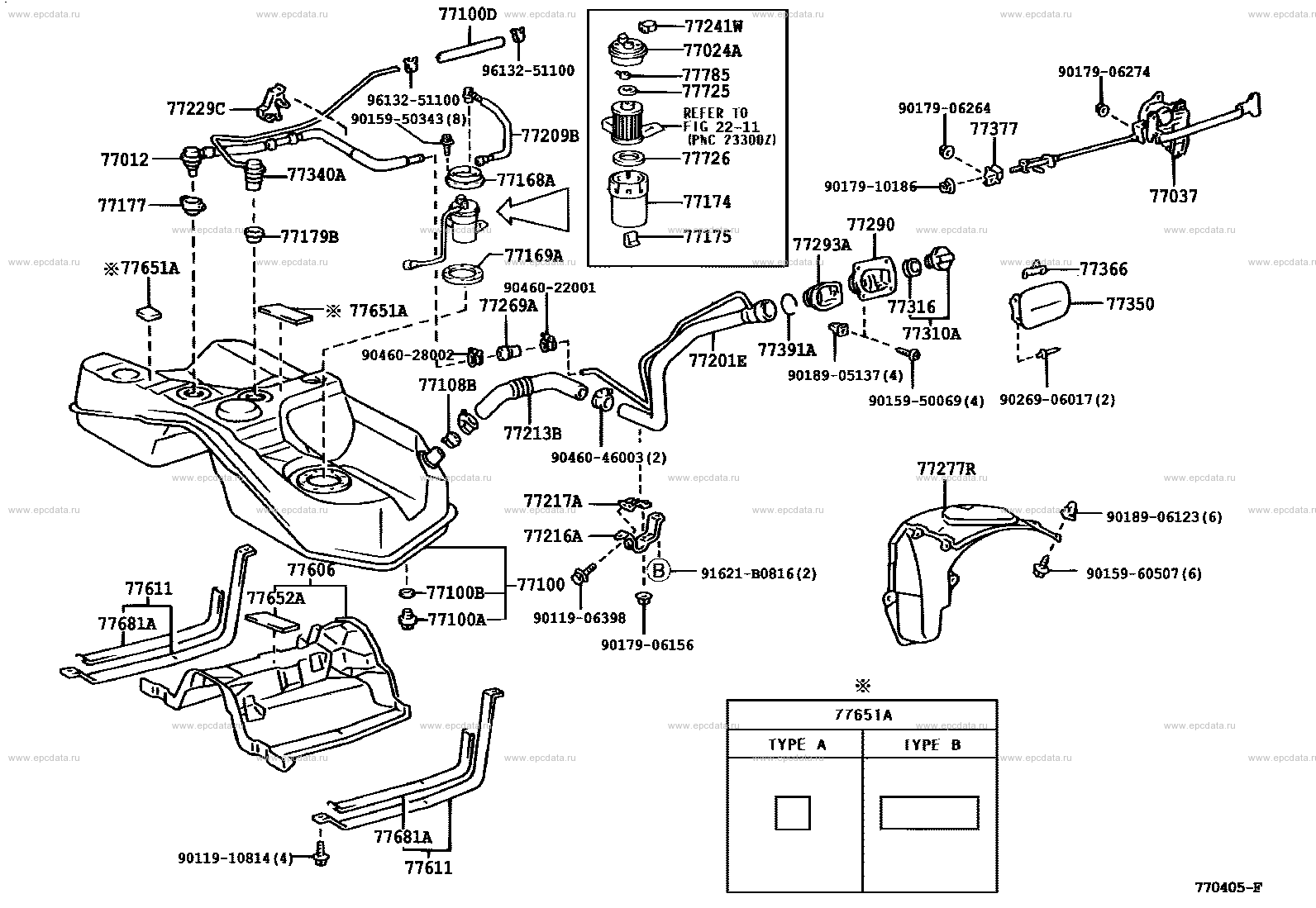

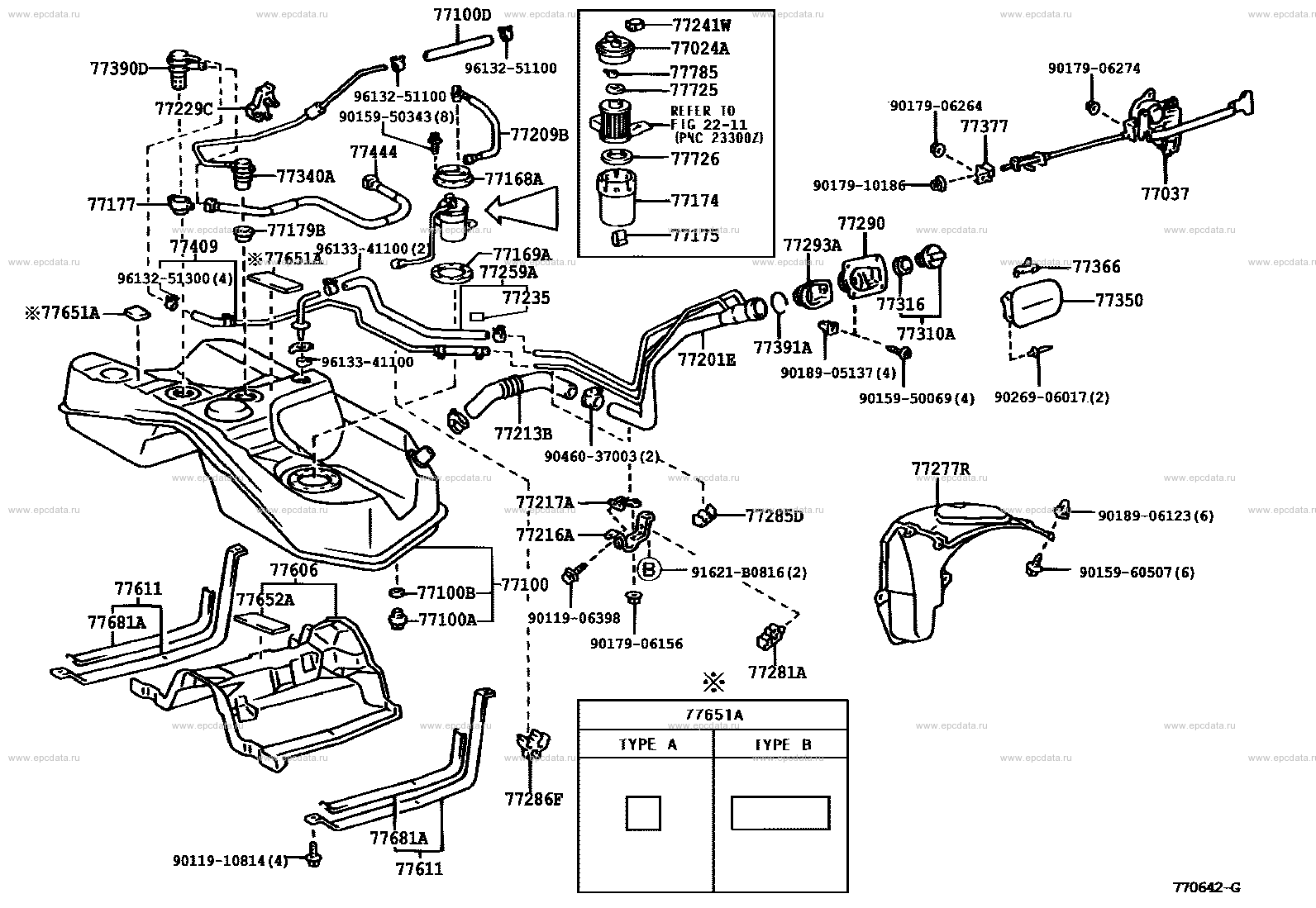

Click part number in the scheme or in the list:
77390D VALVE ASSY, FUEL TANK OVER FILL CHECK
77229C CLAMP, BREATHER TUBE
77177 GASKET, CHECK VALVE
77409 HOSE SUB-ASSY, FUEL, NO.3
77651A CUSHION, FUEL TANK, NO.1
77444 HOSE, FUEL TANK VENT
77100D HOSE, FUEL, NO.1 (FOR FUEL TANK)
77168A PLATE, FUEL TANK VENT TUBE SET
77209B TUBE SUB-ASSY, FUEL PUMP
77169A GASKET, FUEL SUCTION TUBE SET
77179B GASKET, FUEL TANK EVAPORATION VENT TUBE
77606 PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77100A PLUG (FOR FUEL TANK)
77100B GASKET (FOR FUEL TANK)
77100 TANK ASSY, FUEL
77213B HOSE, FUEL TANK TO FILLER PIPE
77217A SUPPORT, FUEL TANK FILLER PIPE, NO.2
77216A SUPPORT, FUEL TANK FILLER PIPE, NO.1
77241W CLIP, TUBE JOINT
77024A PLATE SUB-ASSY, FUEL SUCTION
77785 HARNESS, FUEL PUMP
77725 CUSHION, FUEL FILTER, NO.1
77726 CUSHION, FUEL FILTER, NO.2
77174 SUPPORT, FUEL SUCTION, NO.1
77175 SUPPORT, FUEL SUCTION, NO.2
** 22-11
77290 SHIELD ASSY, FUEL TANK FILLER PIPE
77293A SHIELD, FUEL TANK FILLER PIPE, NO.3
77316 GASKET, FUEL TANK CAP
77310A CAP ASSY, FUEL TANK
77391A RING, FUEL INLET BOX
77201E PIPE SUB-ASSY, FUEL TANK FILLER
77285D CLAMP, FUEL TUBE, NO.1
77281A CLAMP, FUEL FILLER PIPE
77277R PROTECTOR, FUEL TANK FILLER PIPE
77350 LID ASSY, FUEL FILLER OPENING
77366 SPRING, FUEL FILLER OPENING LID HINGE
77037 LOCK SUB-ASSY, FUEL FILLER OPENING LID
77377 RETAINER, FUEL FILLER OPENING LID LOCK
77286F CLAMP, FUEL TUBE, NO.2
77681A SEAT, FUEL TANK BAND
77611 BAND, FUEL TANK
9613341100 ** Std Part
77340A VALVE ASSY, FUEL CUT OFF W/TUBE
9613251300 ** Std Part
9015950343 ** Std Part
9613251100 ** Std Part
9046037003 ** Std Part
9018905137 ** Std Part
9015950069 ** Std Part
9017910186 ** Std Part
9017906264 ** Std Part
9026906017 ** Std Part
9017906274 ** Std Part
9018906123 ** Std Part
9015960507 ** Std Part
91621B0816 ** Std Part
9017906156 ** Std Part
9011906398 ** Std Part
77235 TUBE, FUEL TANK BREATHER, NO.1
9011910814 ** Std Part
77652A CUSHION, FUEL TANK, NO.2
77259A HOSE, FUEL (FOR BREATER TUBE) |
