Meter for GS300 / 400 / 430 UZS160L
Click on the part subgroup below to get genuine part numbers.

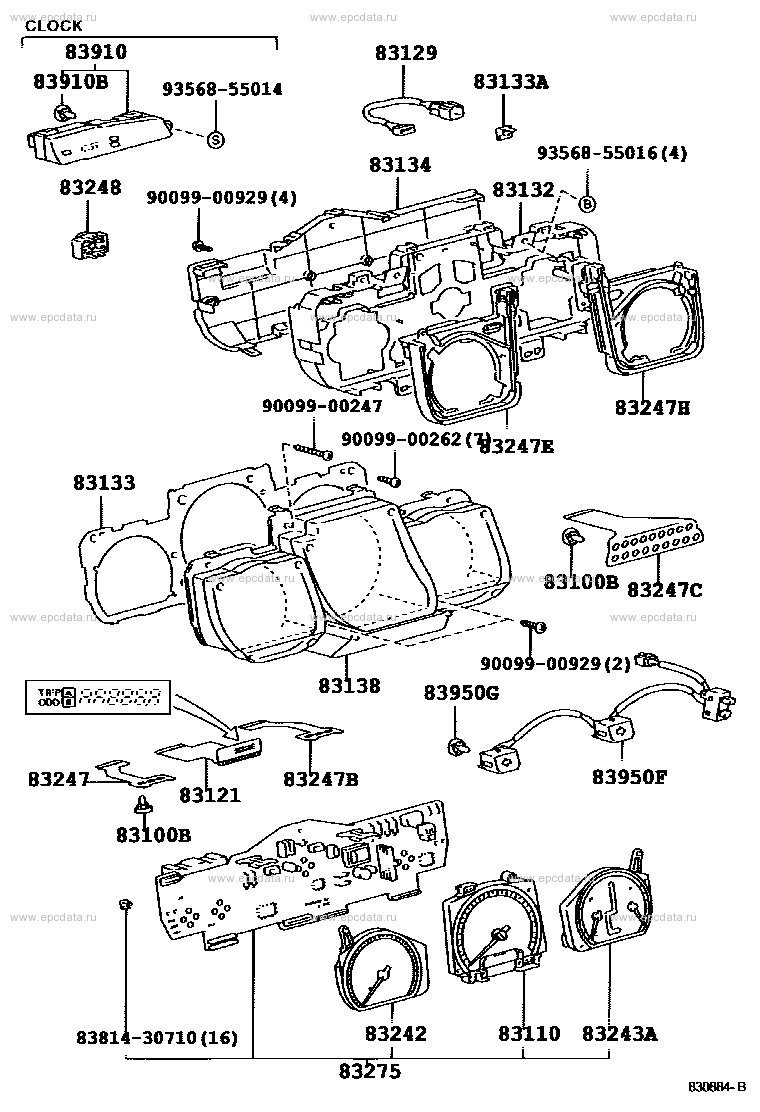

Scheme 1
|
Click part number in the scheme or in the list: 83110 SPEEDOMETER ASSY8381430710 ** Std Part 83910 CLOCK ASSY 83910B BULB, CLOCK INDICATOR 9356855014 ** Std Part 9356855016 ** Std Part 83129 WIRE, METER 83133A PLATE, COMBINATION METER, NO.2 83134 COVER, COMBINATION METER, NO.1 83132 CASE, COMBINATION METER 83247H PLATE, METER CIRCUIT, NO.5 83247E PLATE, MATER CIRCUIT, NO.4 83247 PLATE, METER CIRCUIT 83100B BULB, COMBINATION METER, NO.1 83133 PLATE, COMBINATION METER, NO.1 83138 GLASS, SPEEDOMETER 83950G BULB, TELLTALE LAMP 83950F LAMP ASSY, TELLTALE 83243A GAUGE SUB-ASSY, FUEL RECEIVER 83242 TACHOMETER ASSY, ENGINE 83247B PLATE, METER CIRCUIT, NO.2 83121 COUNTER, TOTAL 9009900929 ** Std Part 83247C PLATE, MATER CIRCUIT, NO.3 9009900262 ** Std Part 9009900247 ** Std Part 83275 PLATE,COMPUTER METER CIRCUIT NO.1 83248 CHIME, SPEED WARNING |
Scheme 2
|
Click part number in the scheme or in the list: 83100B BULB, COMBINATION METER, NO.1 |
