Heating & air conditioning - cooler unit for GS300 / 400 / 430 UZS160L

Click on the part subgroup below to get genuine part numbers.

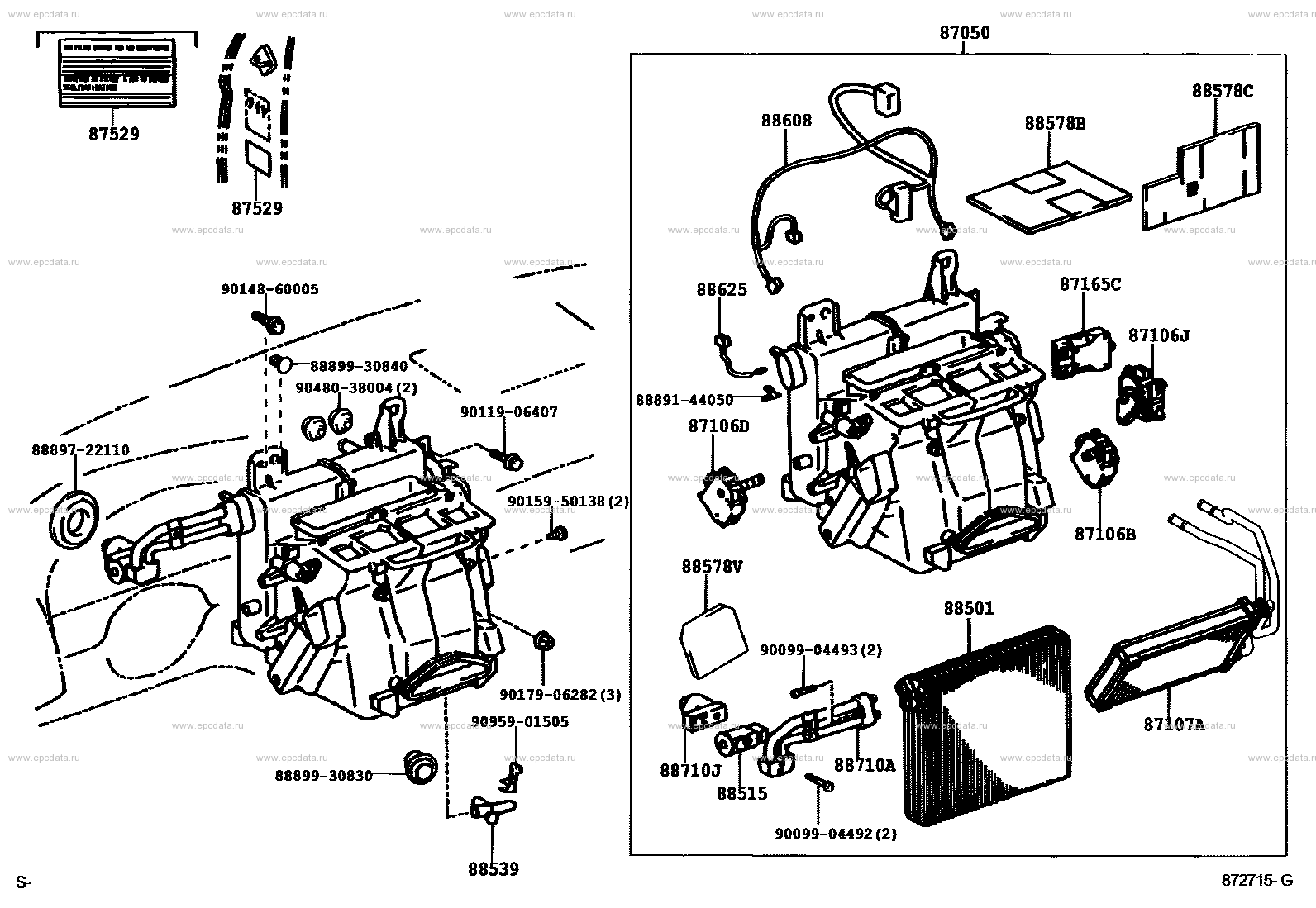

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 87529 PLATE, AIR FILTER CAUTION 9014860005 ** Std Part 9011906407 ** Std Part 8889930840 ** Std Part 8889722110 ** Std Part 9048038004 ** Std Part 8889930830 ** Std Part 88539 HOSE, COOLER UNIT DRAIN, NO.1 9095901505 ** Std Part 9017906282 ** Std Part 9015950138 ** Std Part 87050 RADIATOR ASSY, AIR CONDITIONER 88578B PACKING, COOLING UNIT, NO.1 88608 HARNESS SUB-ASSY, WIRING AIR CONDITIONER 88625 THERMISTOR, COOLER, NO.1 88578C PACKING, COOLING UNIT, NO.2 87165C CONTROL, BLOWER MOTOR 87106J SERVO SUB-ASSY, DAMPER (FOR MODE) 87106B SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) 87107A UNIT SUB-ASSY, HEATER RADIATOR 88501 EVAPORATOR SUB-ASSY, COOLER, NO.1 88710A TUBE ASSY, AIR CONDITIONER 9009904492 ** Std Part 9009904493 ** Std Part 88515 VALVE, COOLER EXPANSION 88710J TUBE, AIR CONDITIONER CONNECTOR 88578V PACKING, COOLING UNIT, NO.3 87106D SERVO SUB-ASSY, DAMPER 8889144050 ** Std Part

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 9009914120 ** Std Part 9009914119 ** Std Part 9009914121 ** Std Part 9009914122 ** Std Part 9009914125 ** Std Part

GS300 / 400 / 430 UZS160L
