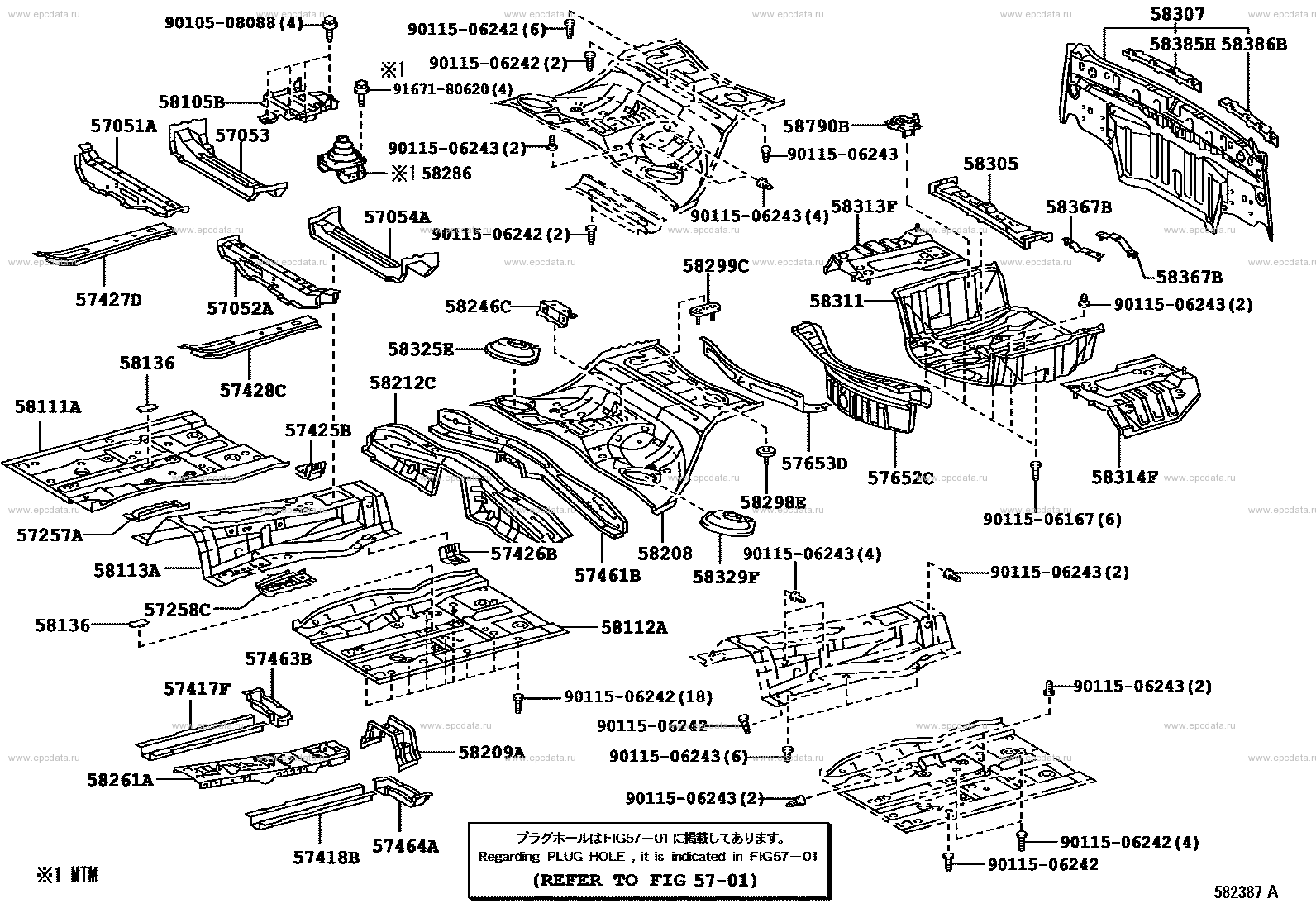

Click part number in the scheme or in the list:
58105B PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58208 PAN, CENTER FLOOR
57461B MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
58212C PAN, CENTER FLOOR, FRONT
58246C BRACKET, REAR SEAT HINGE, CENTER NO.2
58298E BRACKET, HOT AIR INTAKE, NO.1
57652C MEMBER, REAR FLOOR CROSS, NO.1
57653D MEMBER, REAR FLOOR CROSS, NO.2
58299C BRACKET, HOT AIRINTAKE, NO.2
58305 BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307 PANEL SUB-ASSY, BODY LOWER BACK
58311 PAN, REAR FLOOR
58313F EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314F EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58325E COVER, REAR FLOOR SERVICE HOLE
58329F COVER, REAR FLOOR SERVICE HOLE, NO.2
58790B CARRIER ASSY, JACK
9010508088 ** Std Part
9011506167 ** Std Part
9011506242 ** Std Part
9011506243 ** Std Part
57051A MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052A MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053 REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH
57054A REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH
57257A BRACKET, ENGINE RR MOUNTING MEMBER, RH
57258C BRACKET, ENGINE RR MOUNTING MEMBER, LH
57417F REINFORCEMENT, FRONT FLOOR UNDER RH
57418B REINFORCEMENT, FRONT FLOOR UNDER, LH
57425B REINFORCEMENT, FRONT FLOOR, NO.2 RH
57426B REINFORCEMENT, FRONT FLOOR, NO.2 LH
57427D REINFORCEMENT, FRONT FLOOR, NO.3 RH
57428C REINFORCEMENT, FRONT FLOOR, NO.3 LH
57463B REINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH
57464A REINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH
58111A PAN, FRONT FLOOR, RH
58112A PANEL, FRONT FLOOR, LH
58113A PANEL, FRONT FLOOR, CENTER
58136 COVER, FRONT FLOOR HOLE
58209A REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58261A COVER, TRANSMISSION
58385H BRACKET, REAR BUMPER COVER, NO.1
58386B BRACKET, REAR BUMPER COVER, NO.2
** 57-01
58367B BRACKET, FUEL TUBE
58286 BOOT, SHIFT AND SELECT LEVER, NO.1
9167180620 ** Std Part |
