Oil pump for IS300 JCE10L
Click on the part subgroup below to get genuine part numbers.

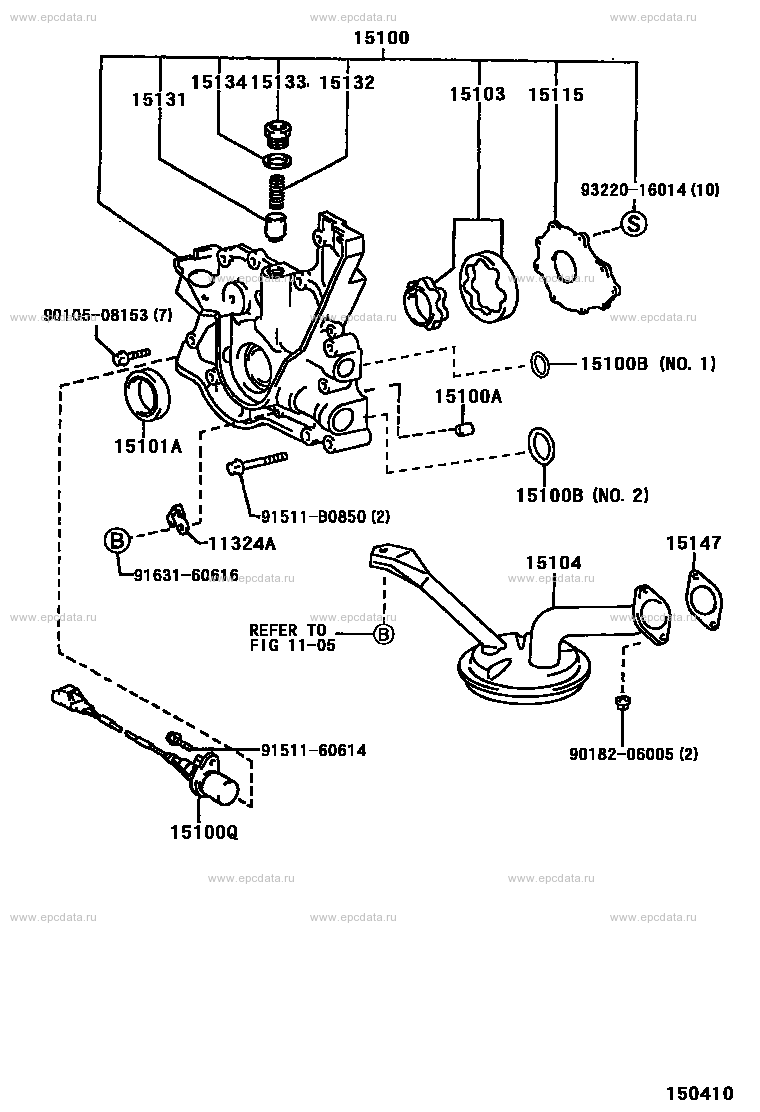

Scheme 1
|
Click part number in the scheme or in the list: 15100 PUMP ASSY, OIL15134 GASKET, OIL PUMP RELIEF VALVE 15133 PLUG, OIL PUMP RELIEF VALVE 15132 SPRING, OIL PUMP RELIEF VALVE 15103 GEAR SET, OIL PUMP 15115 COVER, OIL PUMP 15131 VALVE, OIL PUMP RELIEF 9322016014 ** Std Part 9010508153 ** Std Part 15100B RING, O (FOR OIL PUMP) 15100A PIN, RING (FOR OIL PUMP SET) 15101A SEAL (FOR CRANKSHAFT) 91511B0850 ** Std Part 11324A PLATE, TIMING BELT 15147 GASKET, OIL STRAINER 15104 STRAINER SUB-ASSY, OIL 9163160616 ** Std Part ** 11-05 9151160614 ** Std Part 9018206005 ** Std Part 15100Q SENSOR, CRANK POSITION |
Scheme 2
|
Click part number in the scheme or in the list: 9010508153 ** Std Part15131 VALVE, OIL PUMP RELIEF 15134 GASKET, OIL PUMP RELIEF VALVE 15133 PLUG, OIL PUMP RELIEF VALVE 15100 PUMP ASSY, OIL 15132 SPRING, OIL PUMP RELIEF VALVE 15101A SEAL (FOR CRANKSHAFT) 15100B RING, O (FOR OIL PUMP) 15100A PIN, RING (FOR OIL PUMP SET) 15147 GASKET, OIL STRAINER 15104 STRAINER SUB-ASSY, OIL 9018206005 ** Std Part ** 11-05 91511B0614 ** Std Part 91511B0850 ** Std Part 15100Q SENSOR, CRANK POSITION 91631B0616 ** Std Part 11324A PLATE, TIMING BELT |
