Starter for IS300 JCE10L

Click on the part subgroup below to get genuine part numbers.

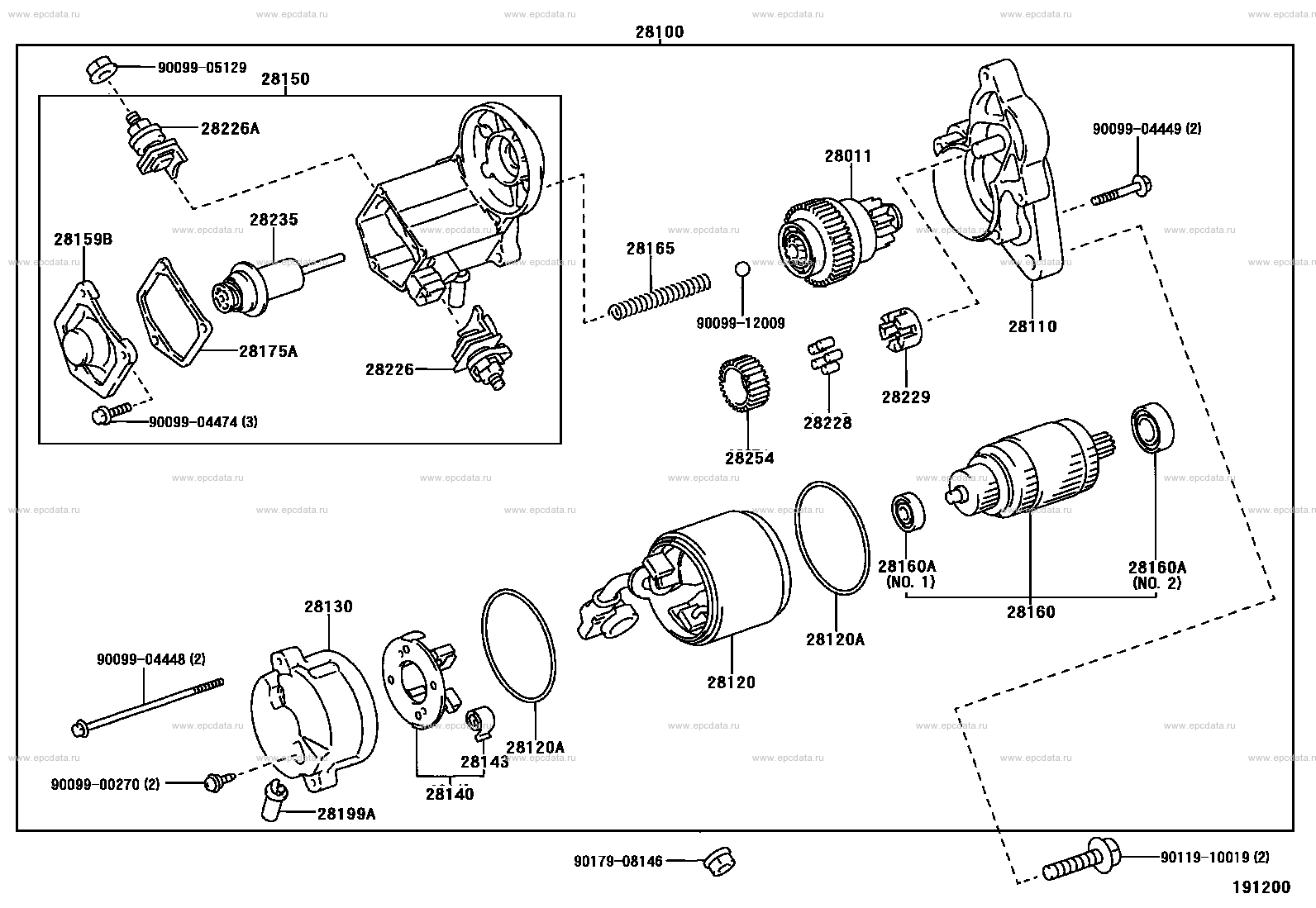

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 28100 STARTER ASSY 9009905129 ** Std Part 28150 SWITCH ASSY, MAGNET STARTER 28226A STARTER KIT, MOTOR TERMINAL 9009904449 ** Std Part 28011 CLUTCH SUB-ASSY, STARTER 28235 PLUNGER, MAGNET SWITCH 28159B COVER, MAGNET SWITCH 28165 SPRING, STARTER MAGNET SWITCH RETURN 9009912009 ** Std Part 28110 HOUSING ASSY, STARTER DRIVE 28175A GASKET, MAGNET SWITCH COVER 28226 STARTER KIT, BATTERY TERMINAL 28229 RETAINER, STARTER IDLE GEAR 9009904474 ** Std Part 28228 ROLLER, STARTER IDLE GEAR CLUTCH 28254 PINION, STARTER IDLE GEAR 28160A BEARING, STARTER ARMATURE 28130 FRAME ASSY, STARTER COMMUTATOR END 28160 ARMATURE ASSY, STARTER 28120A RING, O (FOR STARTER YOKE) 9009904448 ** Std Part 28120 YOKE ASSY, STARTER 28143 SPRING, STARTER BRUSH 9009900270 ** Std Part 28140 HOLDER ASSY, STARTER BRUSH 28199A PROTECTOR, DUST STARTER 9011910019 ** Std Part 9017908146 ** Std Part

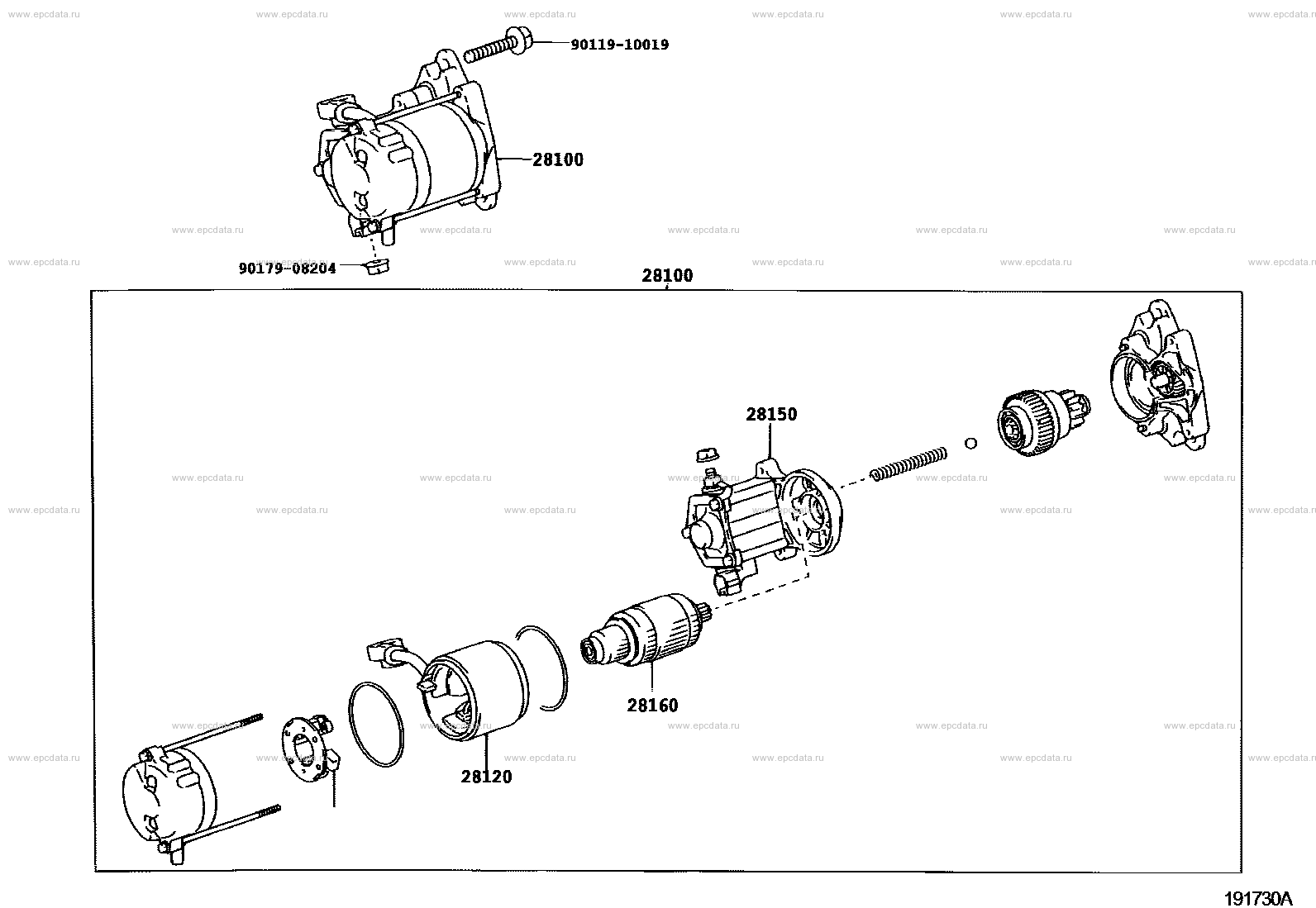

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 9017908204 ** Std Part 9011910019 ** Std Part 28100 STARTER ASSY 28150 SWITCH ASSY, MAGNET STARTER 28160 ARMATURE ASSY, STARTER 28120 YOKE ASSY, STARTER

IS300 JCE10L
