Roof headlining & silencer pad for LS600HL UVF46L
Click on the part subgroup below to get genuine part numbers.

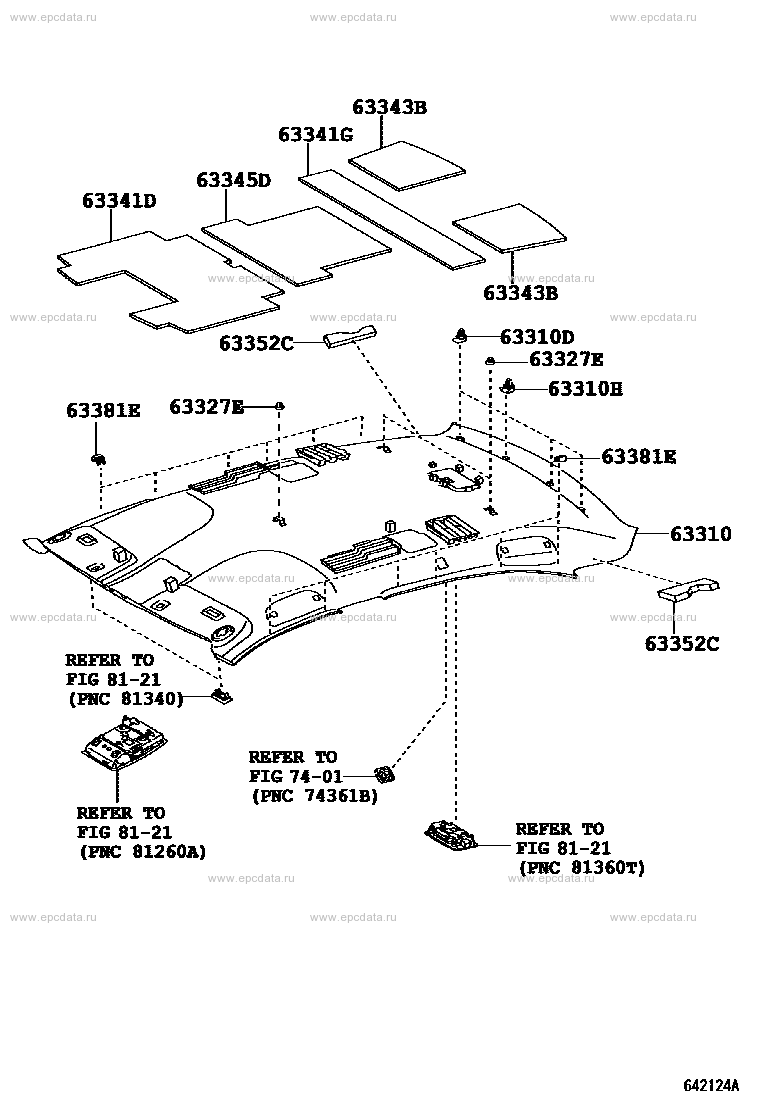

Scheme 1
|
Click part number in the scheme or in the list: 63310 HEADLINING ASSY, ROOF63341D PAD, ROOF SILENCER, FRONT 63345D PAD, ROOF SILENCER, CENTER 63343B PAD, ROOF SILENCER, REAR 63341G PAD, ROOF SILENCER 63352C PAD, ROOF HEADLINING, END 63327E FASTENER, ROOF HEADLINING, NO.1 ** 81-21 63381E RETAINER, ROOF HEADLINING TRIM, FRONT ** 74-01 63310D CLIP, ROOF HEADLINING 63310H CLIP(FOR ROOF HEADLINING) |
Scheme 2
|
Click part number in the scheme or in the list: 63310 HEADLINING ASSY, ROOF63343B PAD, ROOF SILENCER, REAR 63341 PAD, ROOF SILENCER, NO.1 63306 TRIM SUB-ASSY, SUNSHADE 63341D PAD, ROOF SILENCER, FRONT 63352C PAD, ROOF HEADLINING, END ** 81-21 63341G PAD, ROOF SILENCER 62982A BEZEL, ROOF SIDE REGISTER, LH 62981A BEZEL, ROOF SIDE REGISTER, RH 63662B PLATE, ROOF CONSOLE 9015940206 ** Std Part 63650A BOX ASSY, ROOF CONSOLE 63412B RETAINER, ROOF CONSOLE 88644 SENSOR, AIR CONDITIONER INFRARED RAYS 9018904217 ** Std Part 63381E RETAINER, ROOF HEADLINING TRIM, FRONT ** 74-01 63310D CLIP, ROOF HEADLINING 63310H CLIP(FOR ROOF HEADLINING) |
