LexusLS600HLUVF46LUVF46L-AEXGHABody and interiorRear seat & seat track

Rear seat & seat track for LS600HL UVF46L

Scheme 1 Scheme 2 Scheme 3 Scheme 4 Scheme 5 Scheme 6 Scheme 7 Scheme 8

Click on the part subgroup below to get genuine part numbers.

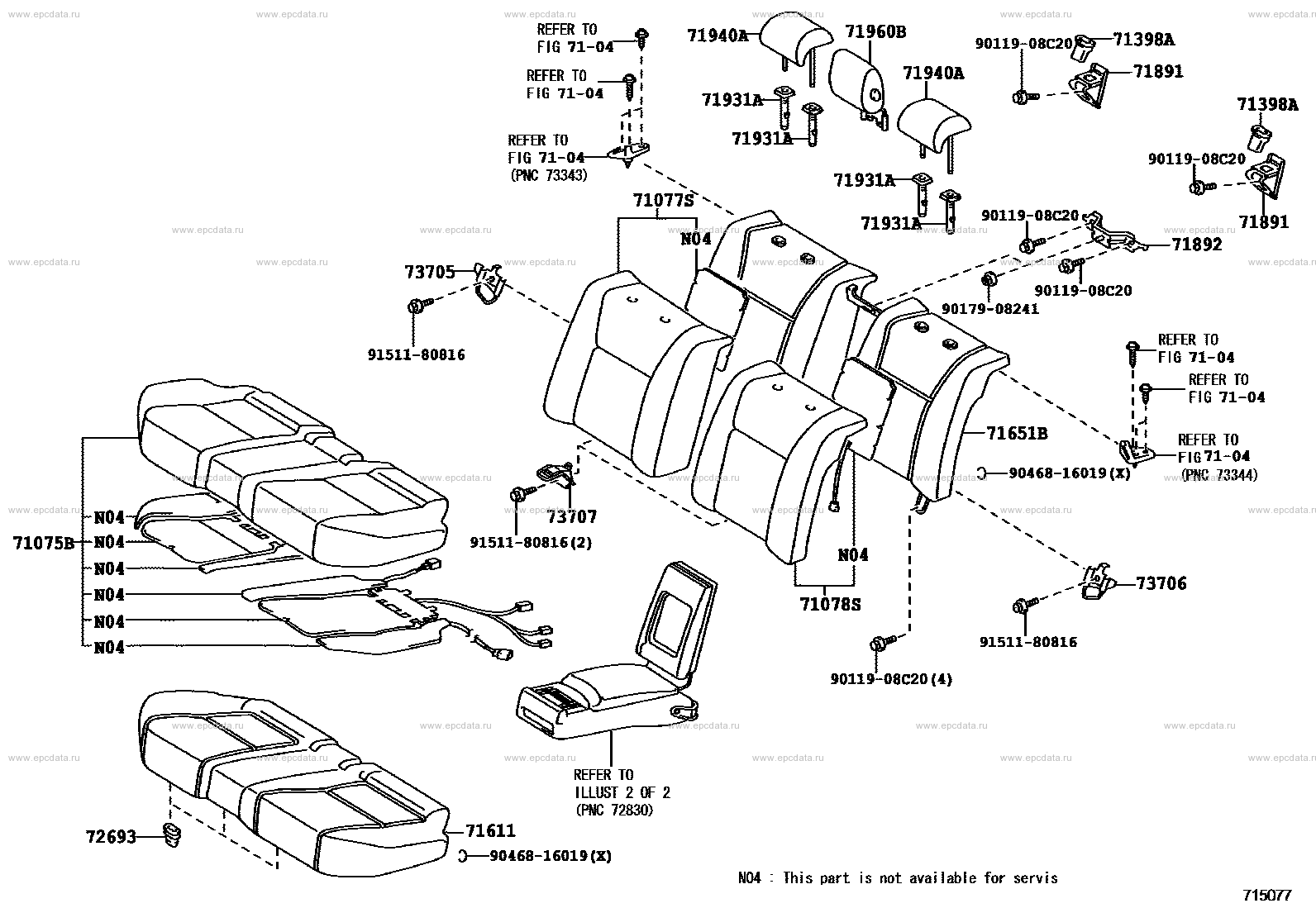

Scheme 1

Click part number in the scheme or in the list:

71398A HOLDER, REAR SEAT BACK
71940A HEADREST ASSY, REAR SEAT
71931A SUPPORT, REAR SEAT HEADREST
71651B PAD, REAR SEAT BACK (FOR BENCH TYPE)
73706 BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
71075B COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71611 PAD, REAR SEAT CUSHION
72693 HOOK, REAR SEAT CUSHION LOCK
73705 BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73707 BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER
71078S COVER, REAR SEAT BACK, LH (FOR SEPARATE TYPE)
71077S COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71960B HEADREST ASSY, REAR SEAT, CENTER
71891 BRACKET, REAR SEAT BACK SET, NO.1
71892 BRACKET, REAR SEAT BACK SET, NO.2
9011908C20 ** Std Part
9017908241 ** Std Part
9151180816 ** Std Part
9046816019 ** Std Part
** 71-04

Scheme 2

Click part number in the scheme or in the list:

71480S BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
71907A ADJUSTER SUB-ASSY, REAR SEAT HEADREST, NO.1
71077S COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71940A HEADREST ASSY, REAR SEAT
71931A SUPPORT, REAR SEAT HEADREST
72730A ADJUSTER ASSY, REAR SEAT RECLINING, RH
85867B BLOWER, REAR SEAT BACK CLIMATE CONTROL, RH
71865 BEZEL, REAR SEAT COVER, NO.1
71832A CLIP, REAR SEAT BACK CARPET OR MAT
73705 BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
73707 BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER
78510B CABLE ASSY, STOP
9046816019 ** Std Part
9017908241 ** Std Part
9151180816 ** Std Part
827112B660 ** Std Part
91631G0616 ** Std Part
** 84-01
** 71-04
** 82-02

Scheme 3

Click part number in the scheme or in the list:

71907A ADJUSTER SUB-ASSY, REAR SEAT HEADREST, NO.1
78510B CABLE ASSY, STOP
71490S BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71940A HEADREST ASSY, REAR SEAT
71866A BEZEL, RR SEAT COVER, NO.2
71078S COVER, REAR SEAT BACK, LH (FOR SEPARATE TYPE)
71832A CLIP, REAR SEAT BACK CARPET OR MAT
85867C BLOWER, REAR SEAT BACK CLIMATE CONTROL, LH
72740A ADJUSTER ASSY, REAR SEAT RECLINING, LH
71931A SUPPORT, REAR SEAT HEADREST
73706 BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
73707 BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, INNER
9017908241 ** Std Part
9046816019 ** Std Part
9151180816 ** Std Part
827112B660 ** Std Part
91631G0616 ** Std Part
** 71-04
** 84-01
** 82-02

Scheme 4

Click part number in the scheme or in the list:

9017908241 ** Std Part
9151180816 ** Std Part
9046816019 ** Std Part
9011906833 ** Std Part
9017906274 ** Std Part
91631G0616 ** Std Part
72730A ADJUSTER ASSY, REAR SEAT RECLINING, RH
71480S BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
73705 BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
71907A ADJUSTER SUB-ASSY, REAR SEAT HEADREST, NO.1
85890A VIBRATOR ASSY, SEAT
71832A CLIP, REAR SEAT BACK CARPET OR MAT
78079 PLATE SUB-ASSY, SUB SEAT BACK
86695A PLATE, VIBRATOR
71077S COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71940A HEADREST ASSY, REAR SEAT
71931A SUPPORT, REAR SEAT HEADREST
72071B PUMP SUB-ASSY, LUMBER SUPPORT
71237 BRACKET, REAR SEAT
** 84-01
** 71-04
827112B660 ** Std Part
71865 BEZEL, REAR SEAT COVER, NO.1
85867B BLOWER, REAR SEAT BACK CLIMATE CONTROL, RH
78510B CABLE ASSY, STOP
87202D DUCT, HEATER AIR, REAR
** 82-02

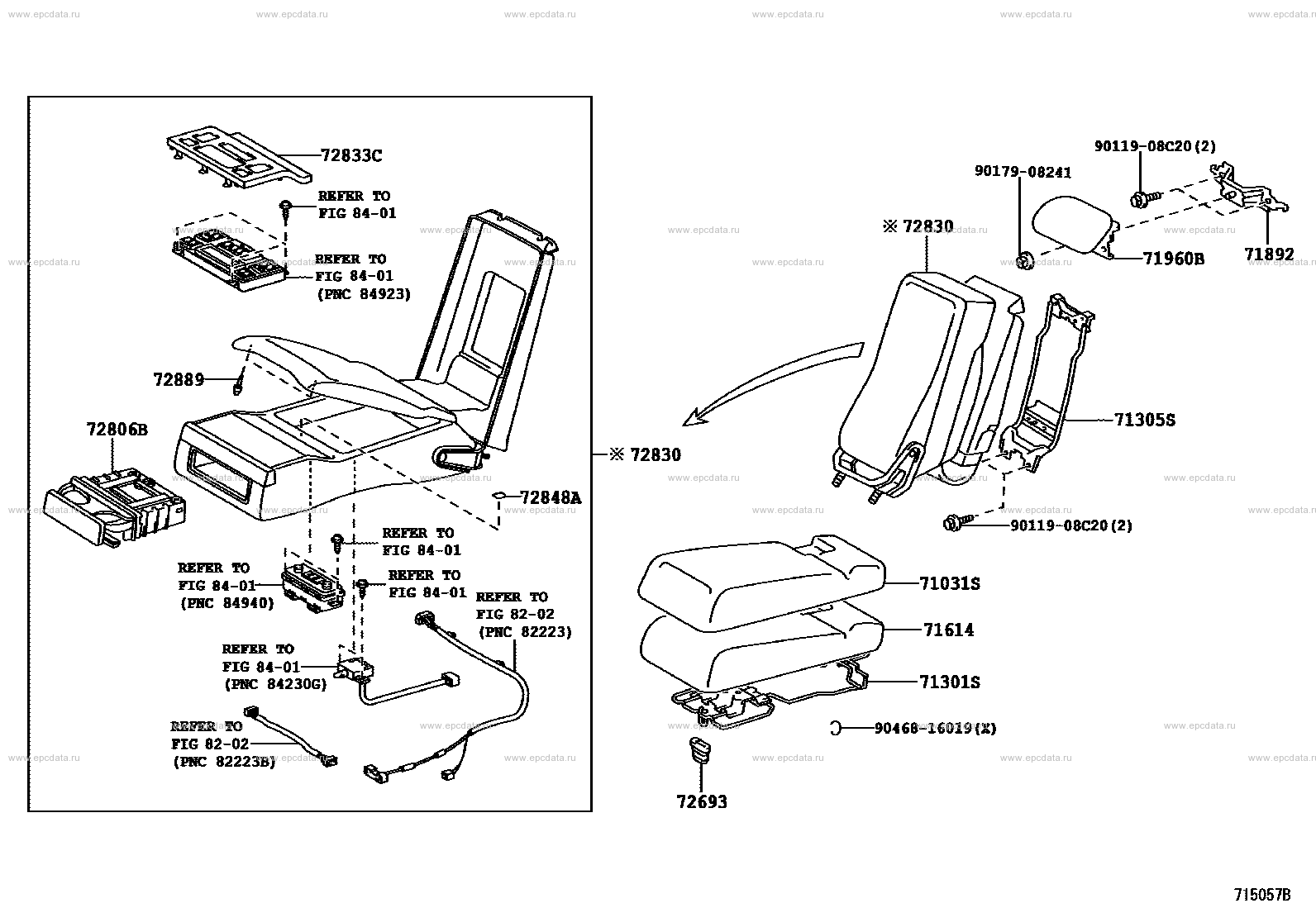

Scheme 5

Click part number in the scheme or in the list:

72830 ARMREST ASSY, REAR SEAT, CENTER
72833C PANEL, REAR SEAT CENTER ARMREST, NO.1
72806B HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
72693 HOOK, REAR SEAT CUSHION LOCK
71301S FRAME SUB-ASSY, CENTER SEAT CUSHION
71614 PAD, REAR SEAT CUSHION, CENTER
71031S COVER SUB-ASSY, CENTER SEAT CUSHION
71960B HEADREST ASSY, REAR SEAT, CENTER
71892 BRACKET, REAR SEAT BACK SET, NO.2
71305S FRAME SUB-ASSY, CENTER SEAT BACK
9046816019 ** Std Part
9011908C20 ** Std Part
9017908241 ** Std Part
72848A CAP, SEAT ARMREST, NO.1
72889 PIN, RR SEAT CTR ARMREST SET
** 82-02
** 84-01

Scheme 6

Click part number in the scheme or in the list:

71075S COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
9046816019 ** Std Part
71611A PAD, REAR SEAT CUSHION, RH
9017908241 ** Std Part
9011908C20 ** Std Part
71650B SPRING ASSY, REAR SEAT CUSHION, RH
85862A BLOWER, REAR SEAT CLIMATE CONTROL, RH
72030 ADJUSTER ASSY, REAR NO.1 SEAT
85864B CONTROLLER, SEAT CLIMATE CONTROL, RH
72693 HOOK, REAR SEAT CUSHION LOCK
71616A PAD, REAR SEAT CUSHION
88922A FILTER, AIR
** 82-02
** 71-04
827112B660 ** Std Part

Scheme 7

Click part number in the scheme or in the list:

71660B SPRING ASSY, REAR SEAT CUSHION, LH
72693 HOOK, REAR SEAT CUSHION LOCK
85863A BLOWER, SEAT CLIMATE CONTROL, LH
72040 ADJUSTER ASSY, REAR NO.2 SEAT
88922A FILTER, AIR
71616A PAD, REAR SEAT CUSHION
85865B CONTROLLER, SEAT CLIMATE CONTROL, LH
71612A PAD, REAR SEAT CUSHION, LH
71076S COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)
9017908241 ** Std Part
9011908C20 ** Std Part
9046816019 ** Std Part
** 82-02
827112B660 ** Std Part

Scheme 8

Click part number in the scheme or in the list:

71898A HOOK, SEAT COVER
71075S COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
71611F PAD, REAR SEAT CUSHION, A
71812B CLIP(FOR REAR SEAT CUSHION COVER)
71612B PAD, REAR SEAT CUSHION, B
71650B SPRING ASSY, REAR SEAT CUSHION, RH
71611A PAD, REAR SEAT CUSHION, RH
73930A AIR BAG ASSY, REAR SEAT, RH
9046816019 ** Std Part
9017906274 ** Std Part
9151180816 ** Std Part
9011908C20 ** Std Part
9017908241 ** Std Part
72927D CLIP (FOR REAR SEAT CUSHION UNDER COVER)
72693 HOOK, REAR SEAT CUSHION LOCK
85862A BLOWER, REAR SEAT CLIMATE CONTROL, RH
72030 ADJUSTER ASSY, REAR NO.1 SEAT
88922A FILTER, AIR
85864B CONTROLLER, SEAT CLIMATE CONTROL, RH
71616A PAD, REAR SEAT CUSHION
827112B660 ** Std Part
** 82-02
