Multi-display (crt display) for LS600HL UVF46L

Click on the part subgroup below to get genuine part numbers.

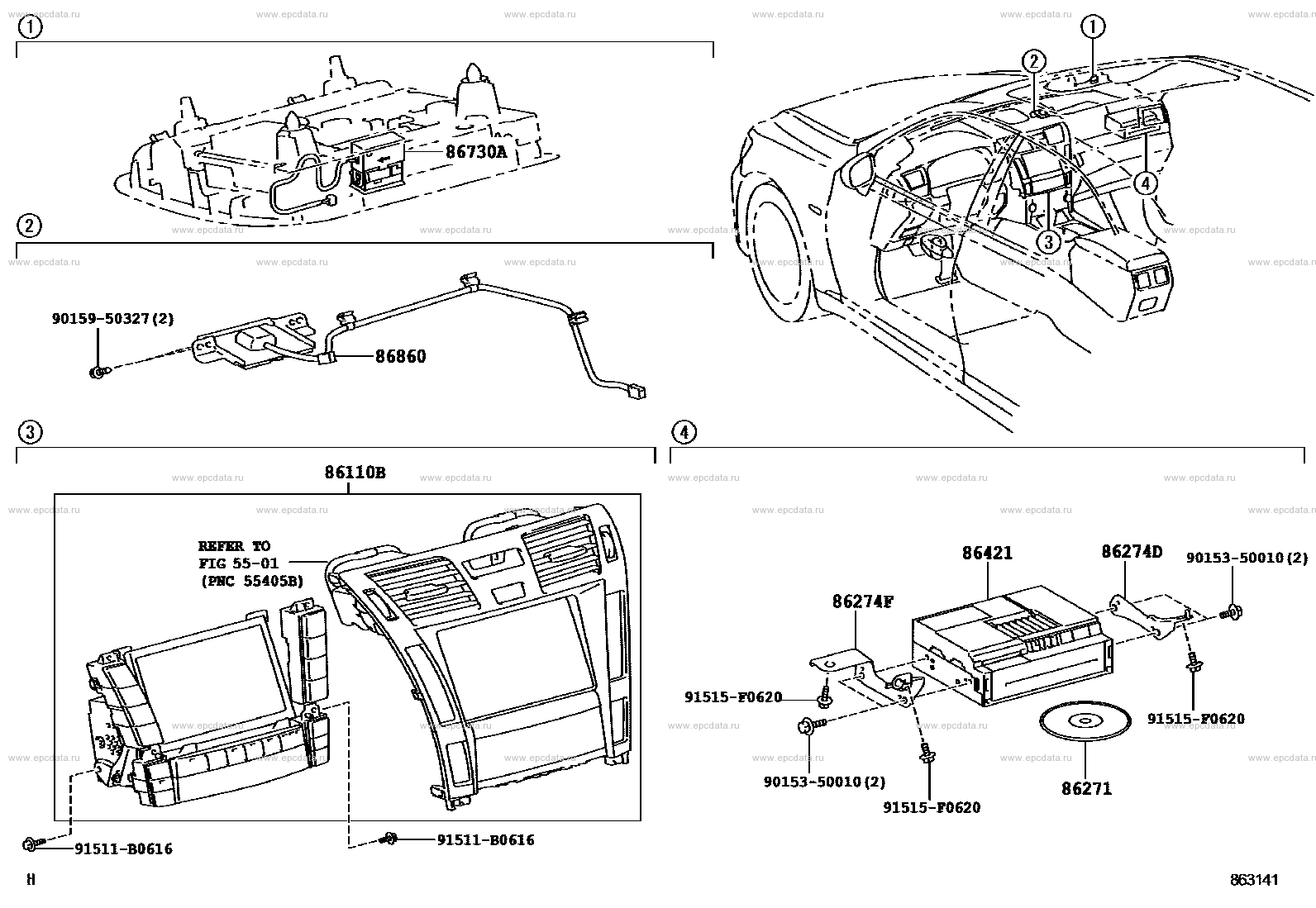

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 86730A MICROPHONE ASSY, TELEPHONE 86860 ANTENNA ASSY, NAVIGATION 86271 DISC, DISC PLAYER 86421 BOARD, NAVIGATION MODULE 86274F BRACKET, DISC PLAYER, NO.2 86274D BRACKET, DISC PLAYER 86110B MULTI-DISPLAY ASSY 91511B0616 ** Std Part 9015950327 ** Std Part 9015350010 ** Std Part 91515F0620 ** Std Part ** 55-01

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 86730A MICROPHONE ASSY, TELEPHONE 86860 ANTENNA ASSY, NAVIGATION 86271 DISC, DISC PLAYER 86431 DISPLAY, DISPLAY & NAVIGATION MODULE 91511B0616 ** Std Part 9015950327 ** Std Part ** 55-01

LS600HL UVF46L
