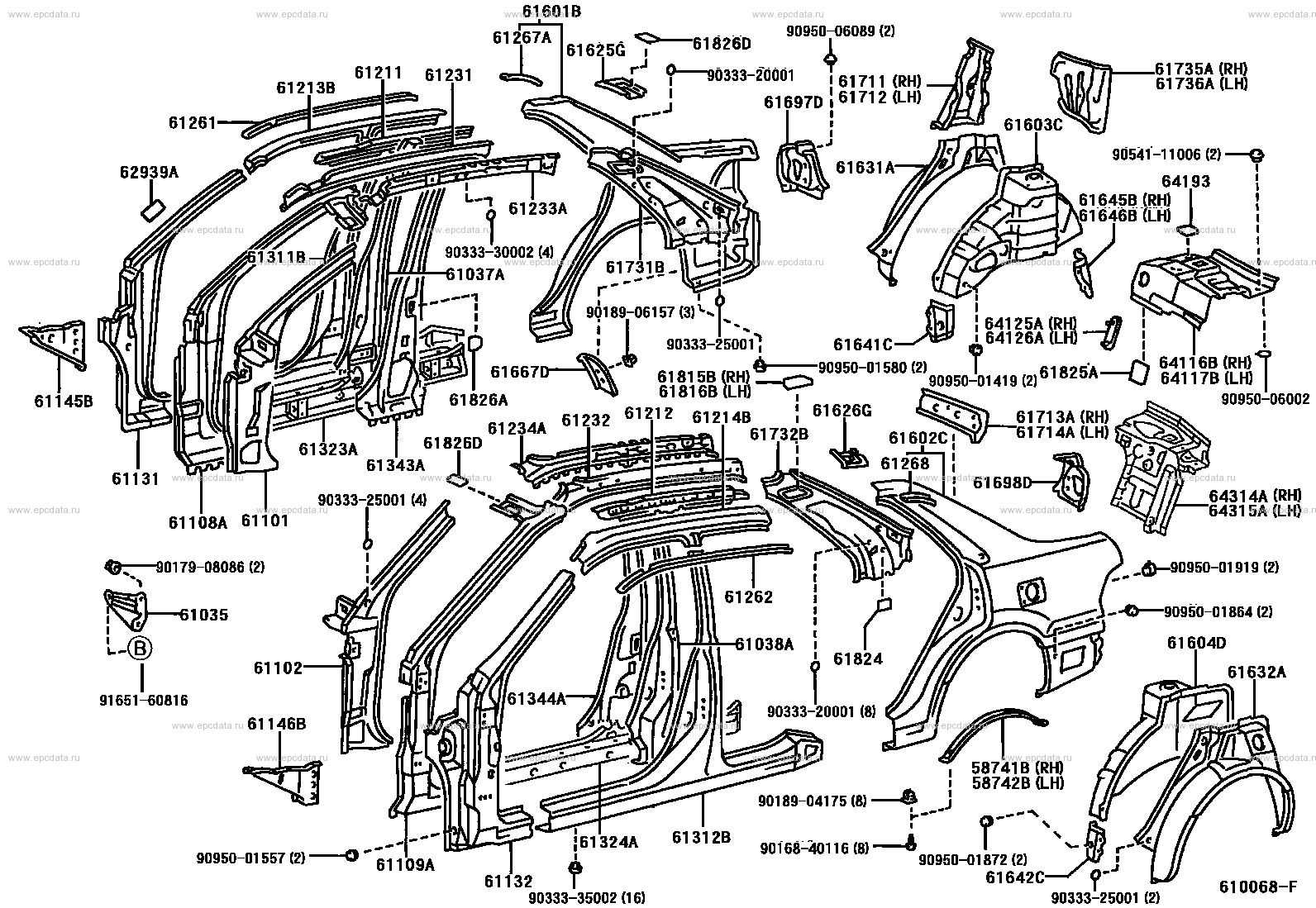

Click part number in the scheme or in the list:
61601B PANEL SUB-ASSY, QUARTER, RH
9095006089 ** Std Part
61267A CHANNEL, ROOF DRIP SIDE, REAR RH
61826D PLATE, NOISE CONTROL, NO.3
61625G EXTENSION, QUARTER PANEL, REAR RH
61735A PANEL, ROOF SIDE, INNER REAR RH
61211 RAIL, ROOF SIDE, OUTER RH
61231 RAIL, ROOF SIDE, INNER RH
9033320001 ** Std Part
61711 PANEL, ROOF SIDE, OUTER RH
61736A PANEL, ROOF SIDE, INNER REAR LH
61213B RAIL, ROOF SIDE OUTER NO.2 RH
61712 PANEL, ROOF SIDE, OUTER LH
61697D HOUSING, QUARTER PANEL END, RH
61261 CHANNEL, ROOF DRIP, RH
61603C PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
9054111006 ** Std Part
61631A PANEL, QUARTER WHEEL HOUSE, OUTER RH
62939A SILENCER, QUARTER VENT
64193 PAD, BACK PANEL SILENCER
61645B GUSSET, QUARTER WHEEL HOUSE, REAR RH
61233A RAIL, ROOF SIDE, INNER NO.2, RH
61646B GUSSET, QUARTER WHEEL HOUSE, REAR LH
9033330002 ** Std Part
61311B PILLAR, CENTER BODY, OUTER RH
61731B PANEL, ROOF SIDE, INNER RH
61037A REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
9018906157 ** Std Part
64125A BRACKET, UPPER BACK PANEL, RH
64126A BRACKET, UPPER BACK PANEL, LH
61641C GUSSET, QUARTER WHEEL HOUSE, FRONT RH
9033325001 ** Std Part
64116B REINFORCEMENT, UPPER BACK, RH
9095001580 ** Std Part
61667D SEAL, QUARTER PANEL
61825A PLATE, NOISE CONTROL, NO.2
61815B COVER, ROOF SIDE, INNER UPPER RH
64117B REINFORCEMENT, UPPER BACK, LH
9095001419 ** Std Part
61816B COVER, ROOF SIDE, INNER UPPER LH
61826A PLATE, NOISE CONTROL, NO.3
9095006002 ** Std Part
61145B GUSSET, FRONT BODY PILLAR, LOWER RH
61626G EXTENSION, QUARTER PANEL, REAR LH
61212 RAIL, ROOF SIDE, OUTER LH
61214B RAIL, ROOF SIDE OUTER NO.2 LH
61713A EXTENSION, ROOF SIDE, OUTER RH
61232 RAIL, ROOF SIDE, INNER LH
61234A RAIL, ROOF SIDE, INNER NO.2, LH
61714A EXTENSION, ROOF SIDE, OUTER LH
61732B PANEL, ROOF SIDE, INNER LH
61602C PANEL SUB-ASSY, QUARTER, LH
61323A REINFORCEMENT, CENTER BODY PILLAR, LOWER RH
61268 CHANNEL, ROOF DRIP SIDE, REAR LH
61343A PILLAR, CENTER BODY, INNER RH
61131 PILLAR, FRONT BODY, UPPER OUTER RH
61698D HOUSING, QUARTER PANEL END, LH
64314A REINFORCEMENT, PACKAGE TRAY BRACKET, RH
64315A REINFORCEMENT, PACKAGE TRAY BRACKET, LH
61101 PANEL SUB-ASSY, COWL SIDE, RH
61108A REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
9017908086 ** Std Part
9095001919 ** Std Part
61262 CHANNEL, ROOF DRIP, LH
9095001864 ** Std Part
61035 BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61604D PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH
61038A REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61824 PLATE, NOISE CONTROL, NO.1
61102 PANEL SUB-ASSY, COWL SIDE, LH
61632A PANEL, QUARTER WHEEL HOUSE, OUTER LH
61344A PILLAR, CENTER BODY, INNER LH
9165160816 ** Std Part
61146B GUSSET, FRONT BODY PILLAR, LOWER LH
58741B PROTECTER, QUARTER PANEL, RH
58742B PROTECTER, QUARTER PANEL, LH
9018904175 ** Std Part
61312B PILLAR, CENTER BODY, OUTER LH
61324A REINFORCEMENT, CENTER BODY PILLAR, LOWER LH
9016840116 ** Std Part
9095001557 ** Std Part
9095001872 ** Std Part
61109A REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61642C GUSSET, QUARTER WHEEL HOUSE, FRONT LH
61132 PILLAR, FRONT BODY, UPPER OUTER LH
9033335002 ** Std Part |
