Heating & air conditioning - water piping for ES300 MCV20L

Click on the part subgroup below to get genuine part numbers.

Open full size scheme

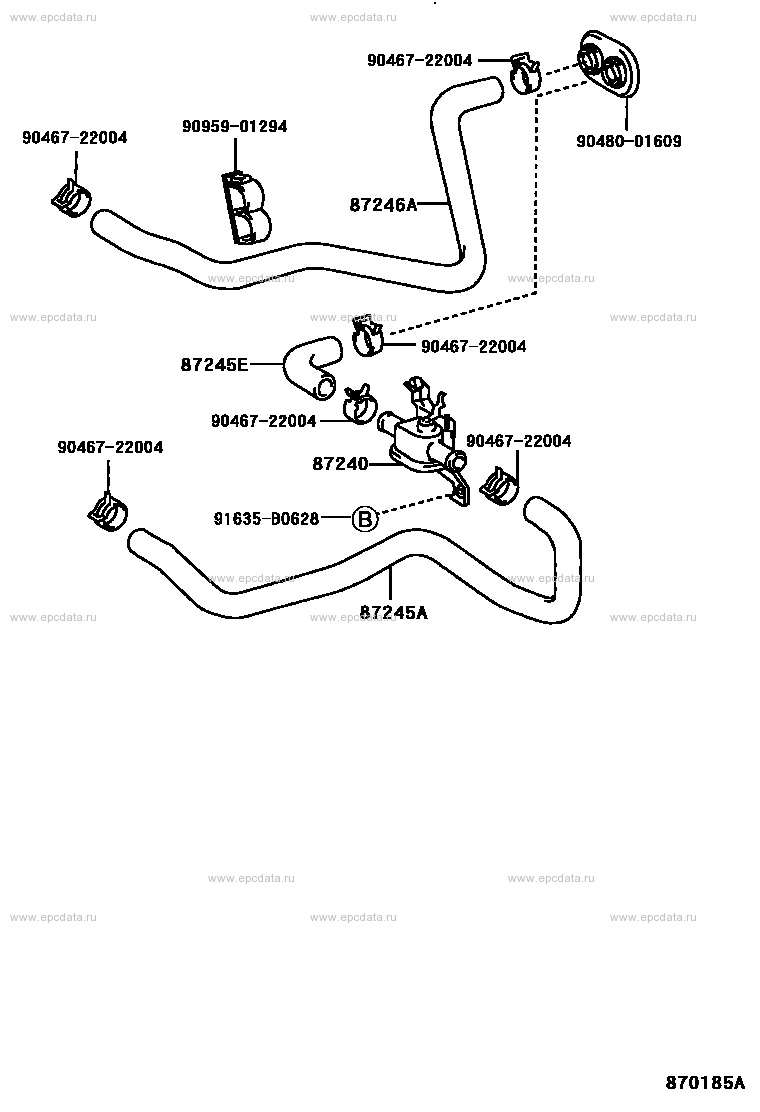

Click part number in the scheme or in the list: 9046722004 ** Std Part 9095901294 ** Std Part 9048001609 ** Std Part 87246A HOSE, HEATER WATER OUTLET, A(FROM HEATER UNIT) 87245E HOSE, HEATER WATER INLET, E 87240 VALVE ASSY, HEATER WATER 91635B0628 ** Std Part 87245A HOSE, HEATER WATER INLET, A

ES300 MCV20L
