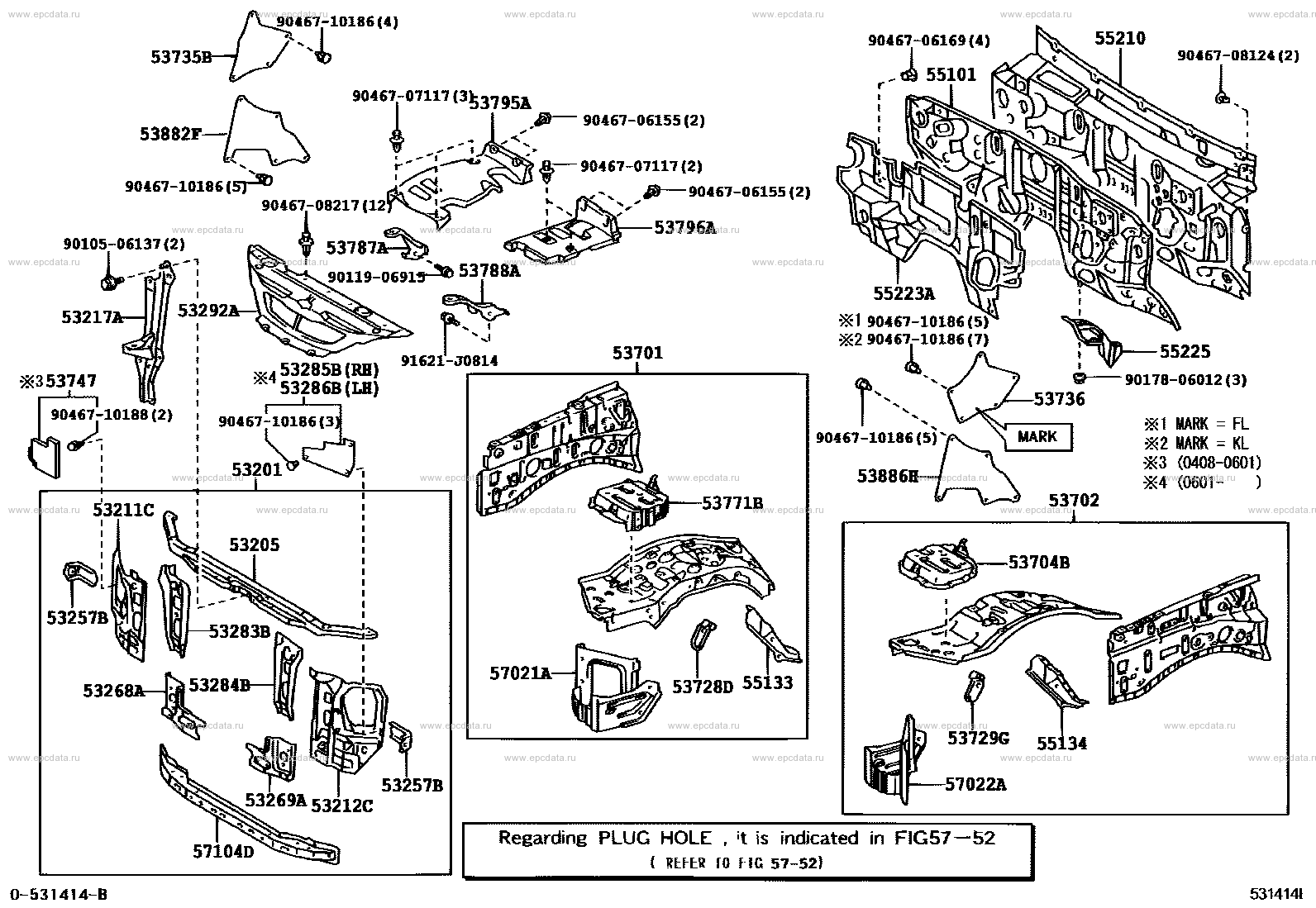

Click part number in the scheme or in the list:
9017806012 ** Std Part
** 57-52
53728D BRACKET, FENDER APRON, RH
55133 PLATE, FRONT FENDER APRON SET, LOWER RH
57104D MEMBER SUB-ASSY, FRONT CROSS
53268A REINFORCEMENT, RADIATOR MOUNTING, RH
53205 SUPPORT SUB-ASSY, RADIATOR, UPPER
53257B BRACKET, RADIATOR SUPPORT TO FRONT FENDER
53211C SUPPORT, RADIATOR, RH
53201 SUPPORT SUB-ASSY, RADIATOR
53217A BRACE, HOOD LOCK SUPPORT
53747 PLATE, AIR SEALED, RH
53286B SEAL, RADIATOR SIDE AIR, NO.2
53285B SEAL, RADIATOR SIDE AIR, NO.1
9010506137 ** Std Part
9046710186 ** Std Part
9046708217 ** Std Part
53882F SEAL, FRONT FENDER
53735B SEAL, FRONT FENDER APRON, UPPER
53736 SEAL, FRONT FENDER APRON, RH
53886H SHIELD, FRONT FENDER SPLASH, REAR LH
53702 APRON SUB-ASSY, FRONT FENDER, LH
53704B SUPPORT SUB-ASSY, BATTERY, LH
53729G BRACKET, FENDER APRON, LH
57022A BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH
55134 PLATE, FRONT FENDER APRON SET, LOWER LH
55223A INSULATOR, DASH PANEL, OUTER
55101 PANEL SUB-ASSY, DASH
9046706169 ** Std Part
55210 INSULATOR ASSY, DASH PANEL
9046708124 ** Std Part
55225 INSULATOR, DASH PANEL HEAT
53269A REINFORCEMENT, RADIATOR MOUNTING, LH
53212C SUPPORT, RADIATOR, LH
53701 APRON SUB-ASSY, FRONT FENDER, RH
53796A COVER, ENGINE ROOM SIDE, LH
9046706155 ** Std Part
9046707117 ** Std Part
53795A COVER, ENGINE ROOM, SIDE
53787A GUSSET, FRONT FENDER APRON, LOWER RH
9011906915 ** Std Part
9046710188 ** Std Part
53788A GUSSET, FRONT FENDER APRON, LOWER LH
91621J0814 ** Std Part
53292A SEAL, RADIATOR SUPPORT, UPPER
57021A BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH
53771B SUPPORT, BATTERY CARRIER, RH
53283B REINFORCEMENT, FRONT BODY MOUNTING, NO.2 RH
53284B REINFORCEMENT, FRONT BODY MOUNTING, NO.2 LH |
