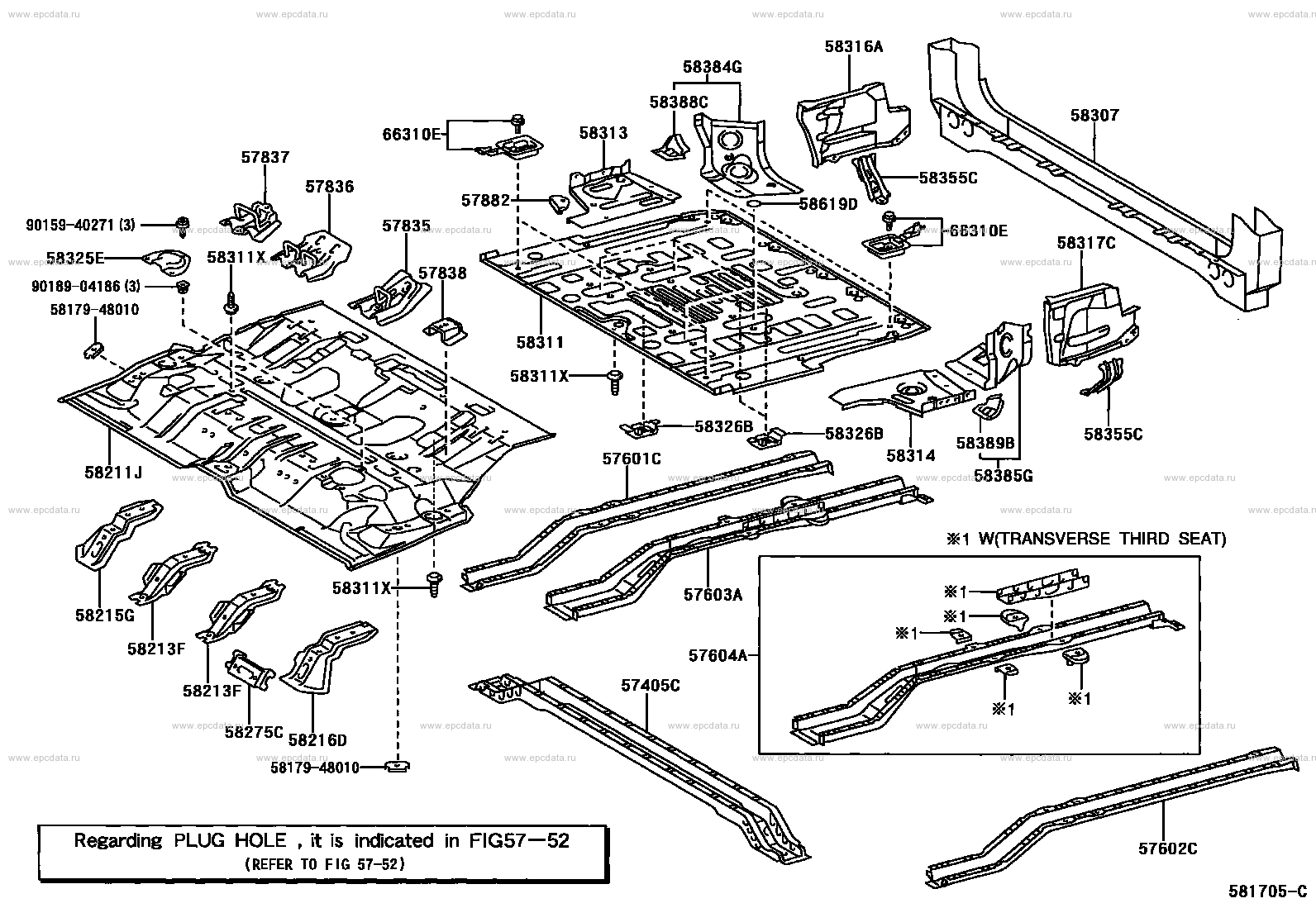

Click part number in the scheme or in the list:
58316A EXTENSION, REAR FLOOR SIDE PANEL, REAR RH
58384G GUSSET, LOWER BACK, UPPER RH
58388C PLATE, BODY LOWER BACK REINFORCEMENT, RH
58307 PANEL SUB-ASSY, BODY LOWER BACK
58313 PANEL, REAR FLOOR SIDE, RH
66310E HOOK ASSY, ROPE
57837 REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3
58355C BRACKET, REAR BUMPER ARM
57836 REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
57882 REINFORCEMENT, BELT ANCHOR, NO.4
58619D SHEET, CENTER FLOOR SILENCER SUB
9015940271 ** Std Part
57835 REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
58317C EXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58311X BOLT, REAR FLOOR WELD
58325E COVER, REAR FLOOR SERVICE HOLE
57838 REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4
9018904186 ** Std Part
5817948010 ** Std Part
58311 PAN, REAR FLOOR
58326B BRACKET, FLEXIBLE HOSE MOUNTING
58389B PLATE, BODY LOWER BACK REINFORCEMENT, LH
58314 PANEL, REAR FLOOR SIDE, LH
57601C MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
58211J PAN, CENTER FLOOR
58385G GUSSET, LOWER BACK, UPPER LH
57603A MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
58215G BRACKET, REAR SEAT MOUNTING, NO.1
58213F REINFORCEMENT, CENTER FLOOR PANEL
57604A MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57405C MEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR
58275C BRACKET, WIRE HARNESS PROTECTOR
58216D BRACKET, REAR SEAT MOUNTING
57602C MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
** 57-52 |
