LexusLS400UCF10LUCF10L-AEPGKABody and interiorFront door panel & glass

Front door panel & glass for LS400 UCF10L

Scheme 1 Scheme 2 Scheme 3

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Click part number in the scheme or in the list:

67513 BRACKET, FRONT DOOR MIRROR, RH
67514 BRACKET, FRONT DOOR MIRROR, LH
67601 BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67602 BOARD SUB-ASSY, FRONT DOOR TRIM, LH
68170 WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
67601A RETAINER (FOR FRONT DOOR TRIM BOARD)
67837B SEAL, FRONT DOOR DUST PROOF
9018904022 ** Std Part
62649 BRACKET, SIDE TRIM
67601F SCREW (FOR FRONT DOOR TRIM BOARD)
** 74-01
9018304046 ** Std Part
67651B GRILLE, SPEAKER DOOR, RH
67652B GRILLE, SPEAKER DOOR, LH
9018904165 ** Std Part
9015940223 ** Std Part

Scheme 2

Click part number in the scheme or in the list:

9033340001 ** Std Part
9095001711 ** Std Part
6182650020 ** Std Part
9095001831 ** Std Part
9095001353 ** Std Part
9033325001 ** Std Part
9095001315 ** Std Part

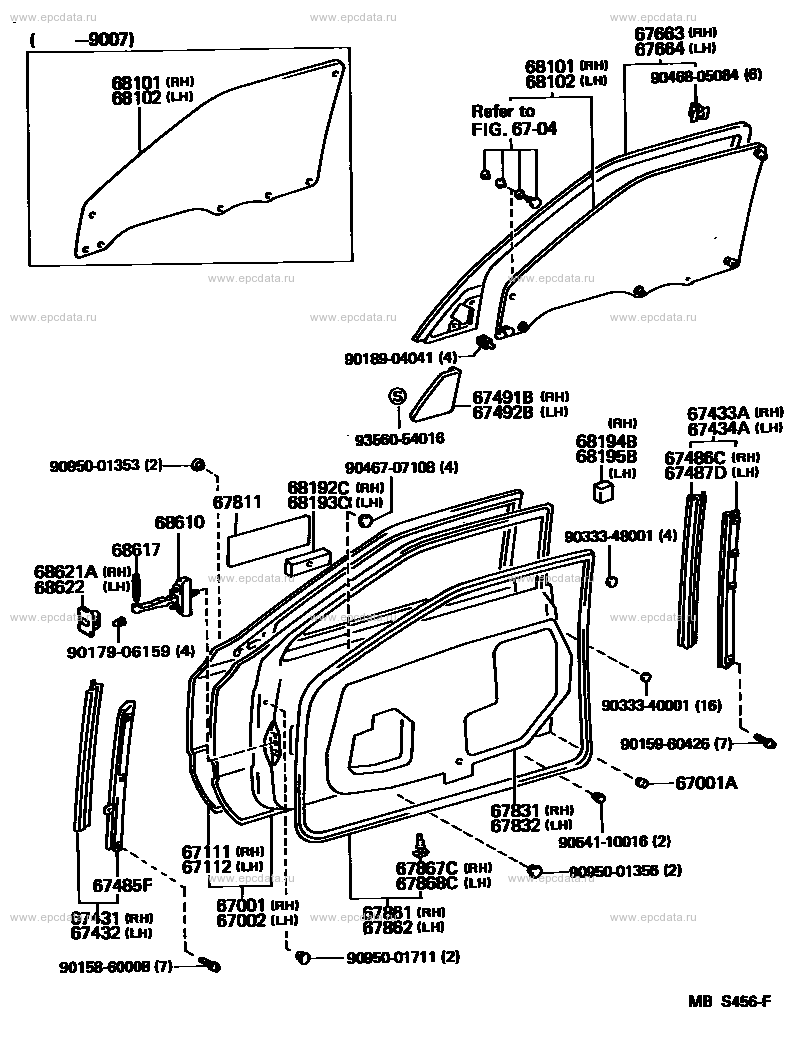

Scheme 3

Click part number in the scheme or in the list:

67663 GARNISH, DOOR FRAME, UPPER RH
67664 GARNISH, DOOR FRAME, UPPER LH
68101 GLASS SUB-ASSY, FRONT DOOR, RH
9046805084 ** Std Part
68102 GLASS SUB-ASSY, FRONT DOOR, LH
** 67-04
9018904041 ** Std Part
67491B GARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH
67492B GARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH
67433A GUIDE, FRONT DOOR WINDOW, REAR RH
67434A GUIDE, FRONT DOOR WINDOW, REAR LH
9356054016 ** Std Part
68194B SEAL, FRONT DOOR BELT, REAR RH
68195B SEAL, FRONT DOOR BELT, REAR LH
67486C WEATHERSTRIP, FRONT DOOR GLASS GUIDE, NO.2
9095001353 ** Std Part
9046707108 ** Std Part
67487D WEATHERSTRIP, FRONT DOOR GLASS GUIDE, NO.3
68192C SEAL, FRONT DOOR BELT, FRONT RH
68193C SEAL, FRONT DOOR BELT, FRONT LH
67811 PAD, FRONT DOOR SILENCER
68610 CHECK ASSY, FRONT DOOR
9033348001 ** Std Part
68617 PIN, FRONT DOOR CHECK
68621A COVER, FRONT DOOR CHECK, RH
68622 COVER, FRONT DOOR CHECK, LH
9017906159 ** Std Part
9033340001 ** Std Part
9015960426 ** Std Part
67001A CUSHION, FRONT DOOR PANEL
67831 COVER, FRONT DOOR SERVICE HOLE, RH
67832 COVER, FRONT DOOR SERVICE HOLE, LH
9054110016 ** Std Part
67111 PANEL, FRONT DOOR, OUTER RH
67112 PANEL, FRONT DOOR, OUTER LH
67867C RETAINER, FRONT DOOR WEATHERSTRIP, RH
9095001356 ** Std Part
67868C RETAINER, FRONT DOOR WEATHERSTRIP, LH
67485F WEATHERSTRIP, FRONT DOOR GLASS GUIDE, NO.1
67001 PANEL SUB-ASSY, FRONT DOOR, RH
67861 WEATHERSTRIP, FRONT DOOR, RH
67431 GUIDE, FRONT DOOR WINDOW, FRONT RH
67002 PANEL SUB-ASSY, FRONT DOOR, LH
67862 WEATHERSTRIP, FRONT DOOR, LH
67432 GUIDE, FRONT DOOR WINDOW, FRONT LH
9095001711 ** Std Part
9015860008 ** Std Part
