Fuel tank & tube for LS400 UCF10L

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 77350 LID ASSY, FUEL FILLER OPENING 93385A5014 ** Std Part 9017014021 ** Std Part 9020105020 ** Std Part 77399A COVER, FUEL FILLER OPENING LID 9046713058 ** Std Part 77366 SPRING, FUEL FILLER OPENING LID HINGE 77295C GROMMET, FUEL TUBE 77310A CAP ASSY, FUEL TANK 9046708028 ** Std Part 77316 GASKET, FUEL TANK CAP 9017605015 ** Std Part 77293A SHIELD, FUEL TANK FILLER PIPE, NO.3 77391 RING, FUEL INLET BOX 9338115010 ** Std Part 9044612028 ** Std Part 9015950253 ** Std Part 77466 PROTECTOR, FUEL TUBE, NO.4 77467 PROTECTOR, FUEL TUBE, NO.5 77201 PIPE SUB-ASSY, FUEL TANK INLET 77178 GASKET, FUEL TANK FILLER PIPE, LOWER 77169A GASKET, FUEL SUCTION TUBE SET 77380 VALVE ASSY, FUEL CUT OFF 9017910146 ** Std Part 77652A CUSHION, FUEL TANK, NO.2 77100 TANK ASSY, FUEL 9165661030 ** Std Part 77651A CUSHION, FUEL TANK, NO.1 77100A PLUG (FOR FUEL TANK) 77100B GASKET (FOR FUEL TANK) ** 22-11 77606F CASE SUB-ASSY, FUEL TANK COVER VENT 77607 CASE SUB-ASSY, FUEL TANK COVER VENT, LH 9017906161 ** Std Part

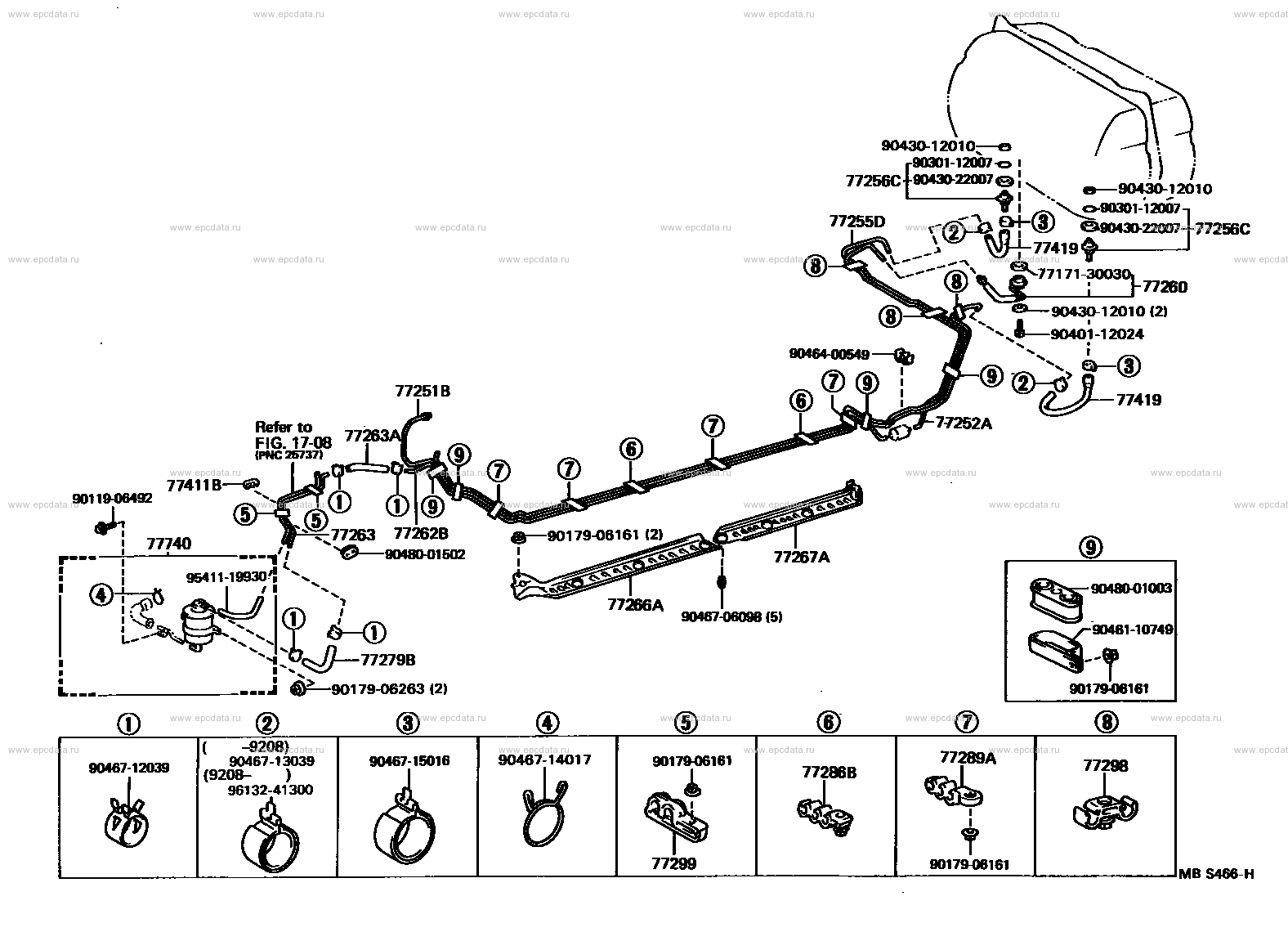

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 9043012010 ** Std Part 9030112007 ** Std Part 9043022007 ** Std Part 77256C TUBE, FUEL RETURN, NO.2 77255D TUBE, FUEL RETURN 77419 HOSE, FUEL, NO.3 7717130030 ** Std Part 77260 HOSE ASSY, FUEL MAIN 9040112024 ** Std Part 9046400549 ** Std Part 77251B TUBE, FUEL MAIN 77252A TUBE, FUEL MAIN, NO.2 77263A HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER NO.3 TUBE) ** 17-08 77411B SUPPORT, FUEL TUBE GROMMET, NO.1 9011906492 ** Std Part 77262B TUBE, FUEL TANK TO CANISTER, NO.2 77263 TUBE, FUEL TANK TO CANISTER, NO.3 9017906161 ** Std Part 77740 CANISTER ASSY, CHARCOAL 9048001502 ** Std Part 77267A PROTECTOR, FUEL TUBE, NO.2 9541119930 ** Std Part 9048001003 ** Std Part 77266A PROTECTOR, FUEL TUBE, NO.1 9046706098 ** Std Part 9046110749 ** Std Part 77279B HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.3) 9017906263 ** Std Part 77289A CLAMP, FUEL TUBE W/GROMMET, NO.3 9046714017 ** Std Part 9046715016 ** Std Part 9046713039 ** Std Part 77298 CLAMP, FUEL TUBE W/GROMMET, NO.4 9046712039 ** Std Part 77286B CLAMP, FUEL TUBE W/GROMMET, NO.2 9613241300 ** Std Part 77299 CLAMP, FUEL TUBE W/GROMMET, NO.5

LS400 UCF10L
