Crankshaft & piston for LS600HL UVF46L

Click on the part subgroup below to get genuine part numbers.

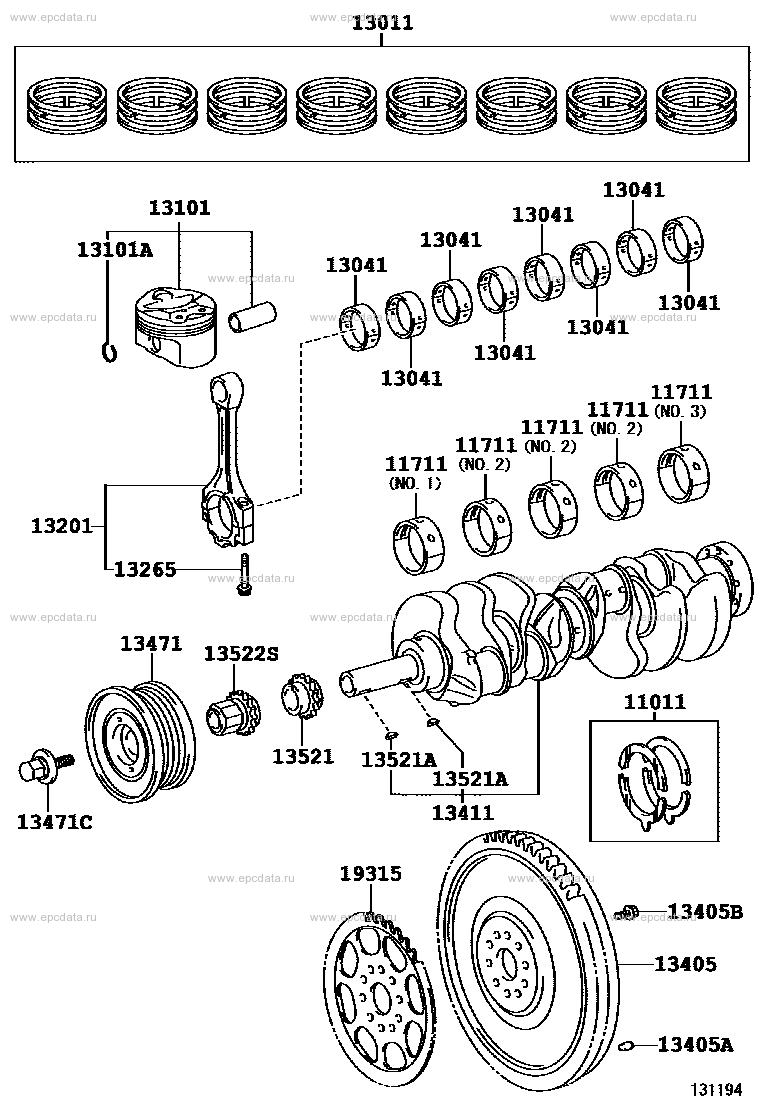

Open full size scheme

Click part number in the scheme or in the list: 13101 PISTON SUB-ASSY, W/PIN 11711 BEARING, CRANKSHAFT 19315 PLATE, CRANK ANGLE SENSOR, NO.1 13405 FLYWHEEL SUB-ASSY 13011 RING SET, PISTON 13041 BEARING, CONNECTING ROD 13101A RING, HOLE SNAP (FOR PISTON PIN) 13201 ROD SUB-ASSY, CONNECTING 13265 BOLT, CONNECTING ROD 13411 CRANKSHAFT 13471 PULLEY, CRANKSHAFT 13471C BOLT (FOR CRANKSHAFT PULLEY SET) 13521 GEAR OR SPROCKET, CRANKSHAFT TIMING 13521A KEY (FOR CRANKSHAFT TIMING GEAR) 13522S SPROCKET, CRANKSHAFT TIMING, LH 13405B BOLT, FLYWHEEL SET 13405A PIN, STRAIGHT (FOR FLYWHEEL) 11011 WASHER SET, CRANKSHAFT THRUST

LS600HL UVF46L
