Heating & air conditioning - control & air duct for LX470 UZJ100L
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
Click part number in the scheme or in the list: 84761 KNOB, ANTENNA SWITCH84725D KNOB, DIFFERENTIAL LOCK SWITCH 84791A KNOB, DEFOGGER TIME SWITCH 84731B BEZEL, SWITCH 84661A KNOB, COOLER CONTROL SWITCH 84875A KNOB, OUTER MIRROR SWITCH |
Scheme 2
|
Click part number in the scheme or in the list: 886886A620 ** Std Part886886A120 ** Std Part 9331314008 ** Std Part 88610F BULB, COOLER CONTROL SWITCH 87123A KNOB, HEATER CONTROL 88610C SWITCH ASSY, COOLER CONTROL |
Scheme 3
|
Click part number in the scheme or in the list: 55846B DUCT, HEATER TO REGISTER, NO.455845A DUCT, HEATER TO REGISTER, NO.3 9015960303 ** Std Part 55972C DUCT, SIDE DEFROSTER NOZZLE, NO.2 55971C DUCT, SIDE DEFROSTER NOZZLE, NO.1 55843A DUCT, HEATER TO REGISTER, NO.1 55847B DUCT, HEATER TO REGISTER, NO.5 9015950098 ** Std Part 55844 DUCT, HEATER TO REGISTER, NO.2 |

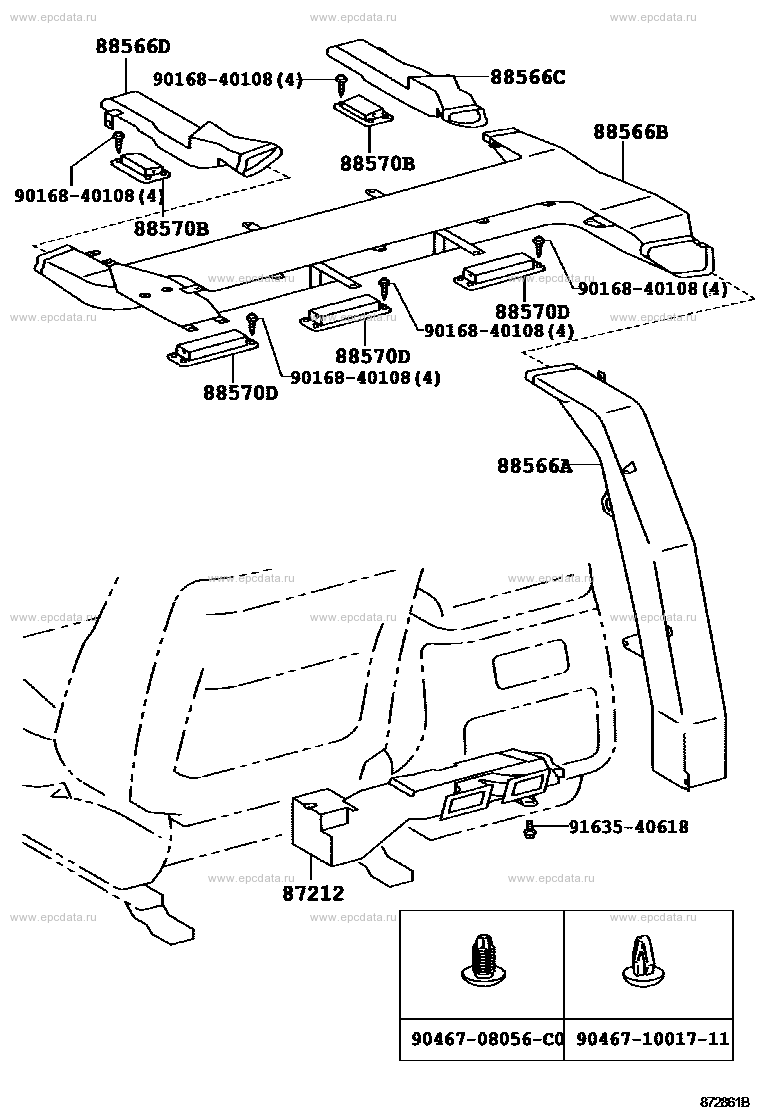

Scheme 4
|
Click part number in the scheme or in the list: 88570B GRILLE ASSY, AIR OUTLET, NO.188566D DUCT, COOLER AIR, NO.4 9016840108 ** Std Part 88566C DUCT, COOLER AIR, NO.3 88570D GRILLE ASSY, AIR OUTLET, NO.2 88566B DUCT, COOLER AIR, NO.2 88566A DUCT, COOLER AIR, NO.1 904671001711 ** Std Part 9046708056C0 ** Std Part 87212 DUCT, AIR, REAR NO.1 9163540618 ** Std Part |
Scheme 5
|
Click part number in the scheme or in the list: 9356815012 ** Std Part9015950098 ** Std Part 89437D COVER, SENSOR 88625H THERMISTOR, COOLER (SOLAR SENSOR) 88625Q THERMISTOR, COOLER (ROOM TEMP. SENSOR) 88650B AMPLIFIER ASSY, AIRCONDITIONER 88625K THERMISTOR, COOLER 88931B SENSOR, SMOKE 88625P THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) 9011908197 ** Std Part 9011908718 ** Std Part |
