Air cleaner for SC300 / 400 UZZ30L

Click on the part subgroup below to get genuine part numbers.

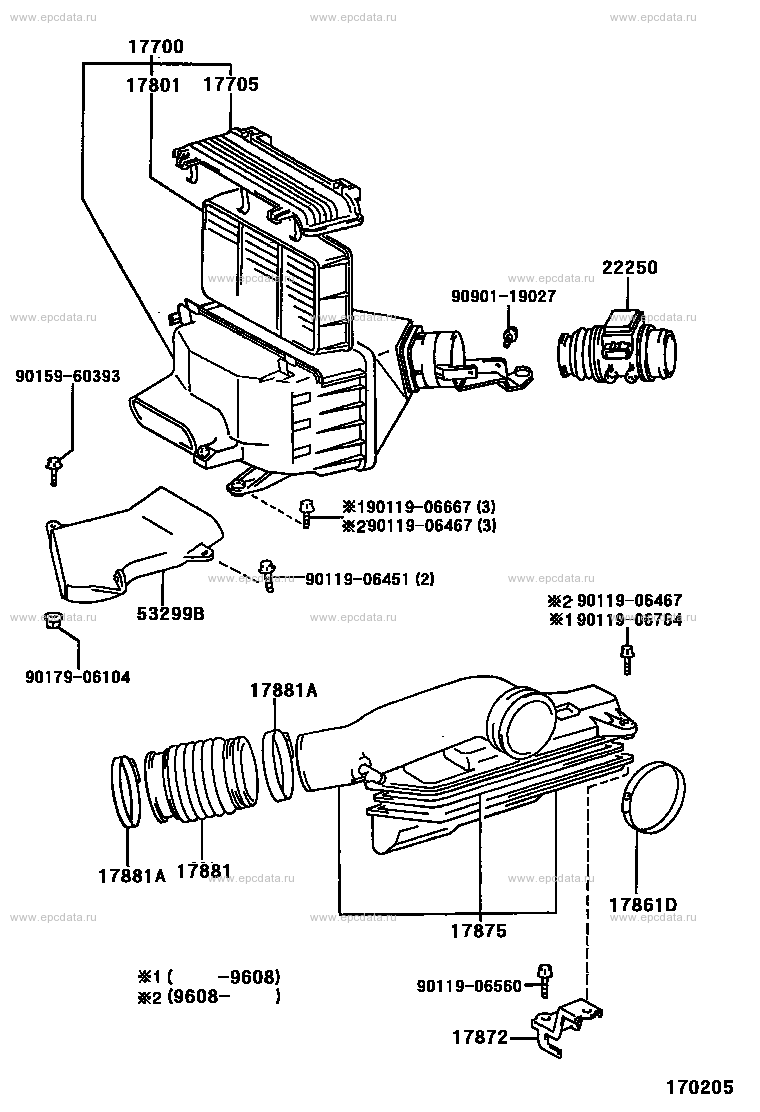

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 17700 CLEANER ASSY, AIR 17705 CAP SUB-ASSY, AIR CLEANER 17801 ELEMENT SUB-ASSY, AIR CLEANER FILTER 22250 METER ASSY, INTAKE AIR FLOW 9038510012 ** Std Part 9056108006 ** Std Part 22275 GASKET, AIR FLOW METER 9015960393 ** Std Part 9017906195 ** Std Part 9011906764 ** Std Part 9011906451 ** Std Part 53299B DUCT, COOL AIR INTAKE 9017906104 ** Std Part 17881A CLAMP (FOR AIR CLEANER HOSE, NO.1) 17881 HOSE, AIR CLEANER, NO.1 17861D CLAMP (FOR INTAKE AIR CONNECTOR) 17875 PIPE, INTAKE AIR CONNECTOR 9011906560 ** Std Part 17872 BRACKET, INTAKE AIR CONNECTOR

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 17700 CLEANER ASSY, AIR 17705 CAP SUB-ASSY, AIR CLEANER 17801 ELEMENT SUB-ASSY, AIR CLEANER FILTER 22250 METER ASSY, INTAKE AIR FLOW 9090119027 ** Std Part 9015960393 ** Std Part 9011906667 ** Std Part 9011906467 ** Std Part 9011906451 ** Std Part 53299B DUCT, COOL AIR INTAKE 9011906764 ** Std Part 9017906104 ** Std Part 17881A CLAMP (FOR AIR CLEANER HOSE, NO.1) 17881 HOSE, AIR CLEANER, NO.1 17861D CLAMP (FOR INTAKE AIR CONNECTOR) 17875 PIPE, INTAKE AIR CONNECTOR 9011906560 ** Std Part 17872 BRACKET, INTAKE AIR CONNECTOR

SC300 / 400 UZZ30L
