Headlamp for GS300 / 400 / 430 UZS160L

Click on the part subgroup below to get genuine part numbers.

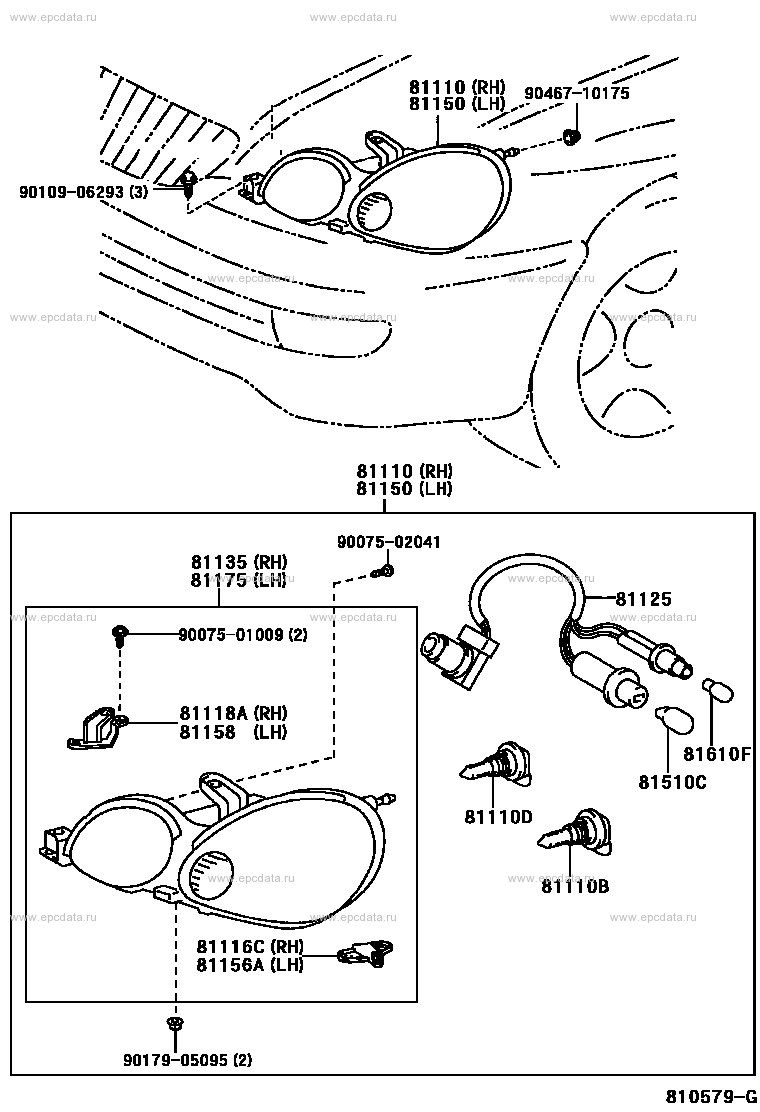

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 81110 HEADLAMP ASSY, RH 9046710175 ** Std Part 81150 HEADLAMP ASSY, LH 9010906293 ** Std Part 9007502041 ** Std Part 81135 UNIT, HEADLAMP, RH 81175 UNIT, HEADLAMP, LH 81125 CORD, HEADLAMP 9007501009 ** Std Part 81118A BRACKET, HEADLAMP, RH 81158 BRACKET, HEADLAMP, LH 81610F BULB (FOR CLEARANCE LAMP) 81510C BULB (FOR FRONT TURN SIGNAL LAMP) 81110D BULB (FOR HEADLAMP, NO.2) 81110B BULB (FOR HEADLAMP, NO.1) 81116C BRACKET, HEADLAMP RH 81156A BRACKET, HEADLAMP LH 9017905095 ** Std Part

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 9010906293 ** Std Part 85691 MOTOR, HEADLAMP LEVELING, LH 9046710175 ** Std Part 81110 HEADLAMP ASSY, RH 81150 HEADLAMP ASSY, LH 81125 CORD, HEADLAMP 81610F BULB (FOR CLEARANCE LAMP) 81510C BULB (FOR FRONT TURN SIGNAL LAMP) 81135 UNIT, HEADLAMP, RH 81175 UNIT, HEADLAMP, LH 9007501009 ** Std Part 9007502041 ** Std Part 81116C BRACKET, HEADLAMP RH 81156A BRACKET, HEADLAMP LH 9017905004 ** Std Part 81117A BRACKET, HEADLAMP, RH 81157A BRACKET, HEADLAMP, LH 85207 ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH 85208 ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH 85669 PACKING, HEADLAMP LEVELING MOTOR BASE ** 84-01 85967 COMPUTER, LIGHT CONTROL 81128B PACKING, HEADLAMP (FOR BALLAST) 81144 COVER, HEADLAMP, NO.1 81110L BULB, DISCHARGE HEADLAMP 81110D BULB (FOR HEADLAMP, NO.2) 81144C COVER, HEADLAMP SOCKET 85661 MOTOR, HEADLAMP LEVELING, RH 81158 BRACKET, HEADLAMP, LH 81118A BRACKET, HEADLAMP, RH

GS300 / 400 / 430 UZS160L
