Wiring & clamp for GS300 / 400 / 430 UZS160L
Click on the part subgroup below to get genuine part numbers.

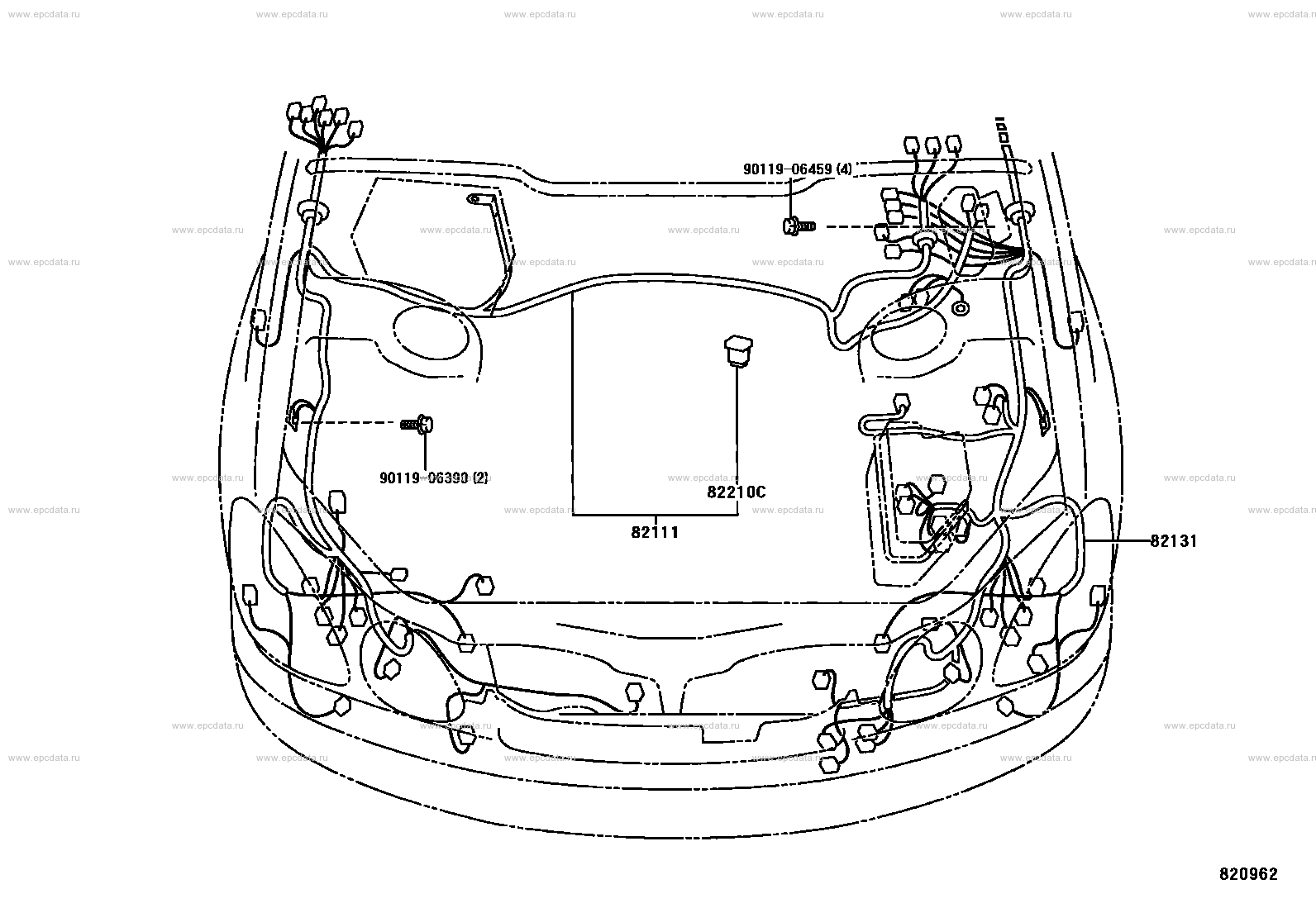

Scheme 1
|
Click part number in the scheme or in the list: 9011906459 ** Std Part9011906390 ** Std Part 82210C FUSIBLE LINK 82111 WIRE, ENGINE ROOM MAIN 82131 WIRE, COWL |
Scheme 2

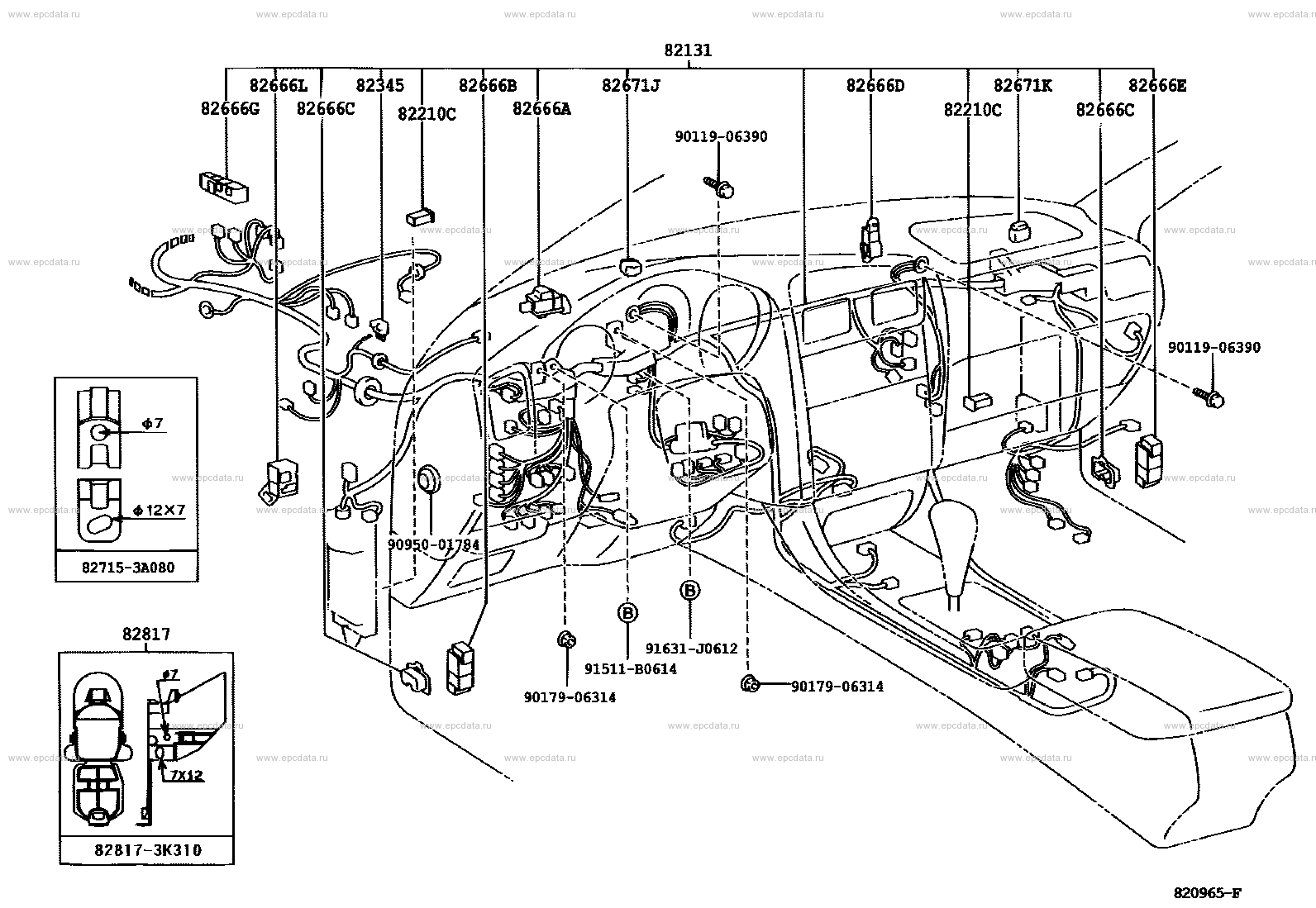

Scheme 3
|
Click part number in the scheme or in the list: 82131 WIRE, COWL82210C FUSIBLE LINK 82345 DIODE 827153A080 ** Std Part 9011906390 ** Std Part 9017906314 ** Std Part 91511B0614 ** Std Part 91631J0612 ** Std Part 9095001784 ** Std Part 82817 PROTECTOR, WIRING HARNESS, NO.1 82666E HOLDER, CONNECTOR NO.6 82666C HOLDER, CONNECTOR NO.4 82666D HOLDER, CONNECTOR NO.5 82666A HOLDER, CONNECTOR NO.2 82666B HOLDER, CONNECTOR NO.3 82671J BLOCK, JUNCTION, NO.2 82671K BLOCK, JUNCTION, NO.3 82666L HOLDER, CONNECTOR NO.9 82666G HOLDER, CONNECTOR NO.8 |

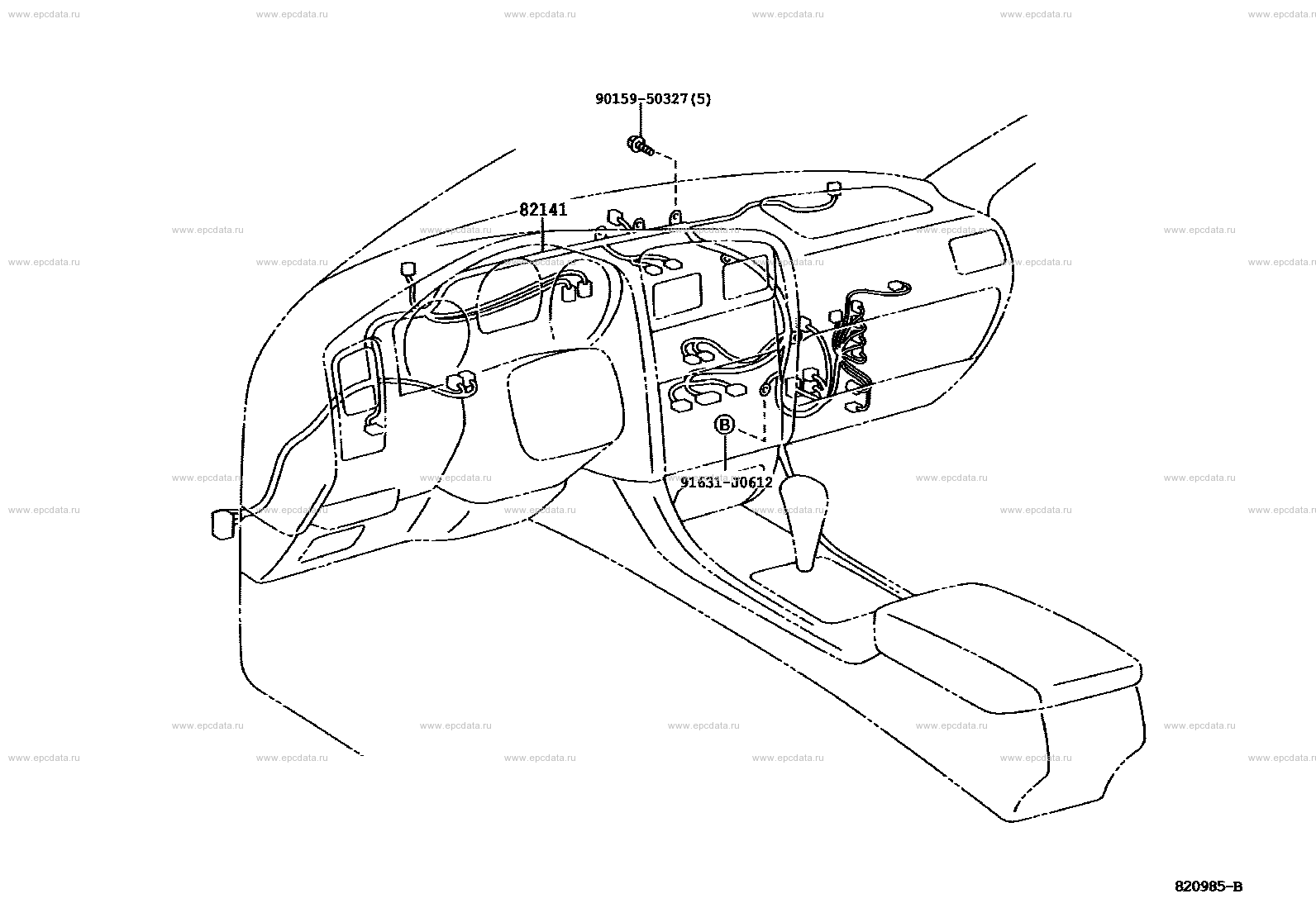

Scheme 4
|
Click part number in the scheme or in the list: 82141 WIRE, INSTRUMENT PANEL91631J0612 ** Std Part 9015950327 ** Std Part |
Scheme 5
|
Click part number in the scheme or in the list: 82151 WIRE, FRONT DOOR, RH** 81-21 82152 WIRE, FRONT DOOR, LH 9015960303 ** Std Part 82153 WIRE, REAR DOOR, NO.1 9018906227 ** Std Part 82154 WIRE, REAR DOOR, NO.2 |
Scheme 6
|
Click part number in the scheme or in the list: 82161 WIRE, FLOOR82162 WIRE, FLOOR, NO.2 82171 WIRE, ROOF, NO.1 82191 WIRE, FRONT SEAT, RH 82192 WIRE, FRONT SEAT, LH 82817B PROTECTOR, WIRING HARNESS, NO.3 82817A PROTECTOR, WIRING HARNESS, NO.2 9011906390 ** Std Part 8271112120 ** Std Part 9017906274 ** Std Part 82671L BLOCK, JUNCTION, NO.4 82671M BLOCK, JUNCTION, NO.5 |
Scheme 7
|
Click part number in the scheme or in the list: 82001 CABLE, BOND, NO.182001C CABLE, BOND, NO.2 86214A BRACKET, RADIO EARTH 9011906067 ** Std Part 9017906161 ** Std Part 91621J0814 ** Std Part |

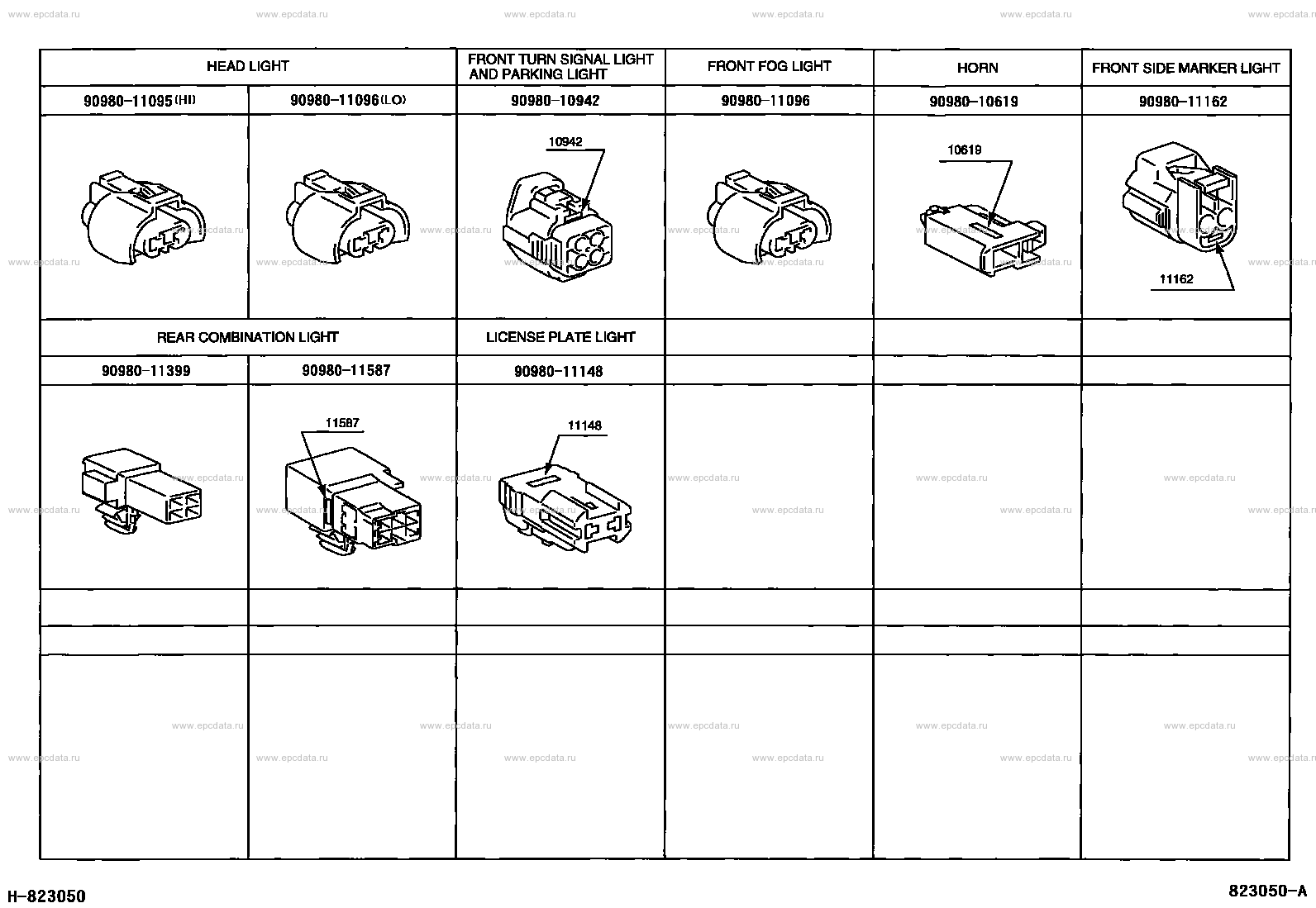

Scheme 8
|
Click part number in the scheme or in the list: 9098011096 ** Std Part9098010942 ** Std Part 9098011095 ** Std Part 9098010619 ** Std Part 9098011162 ** Std Part 9098011399 ** Std Part 9098011587 ** Std Part 9098011148 ** Std Part |
